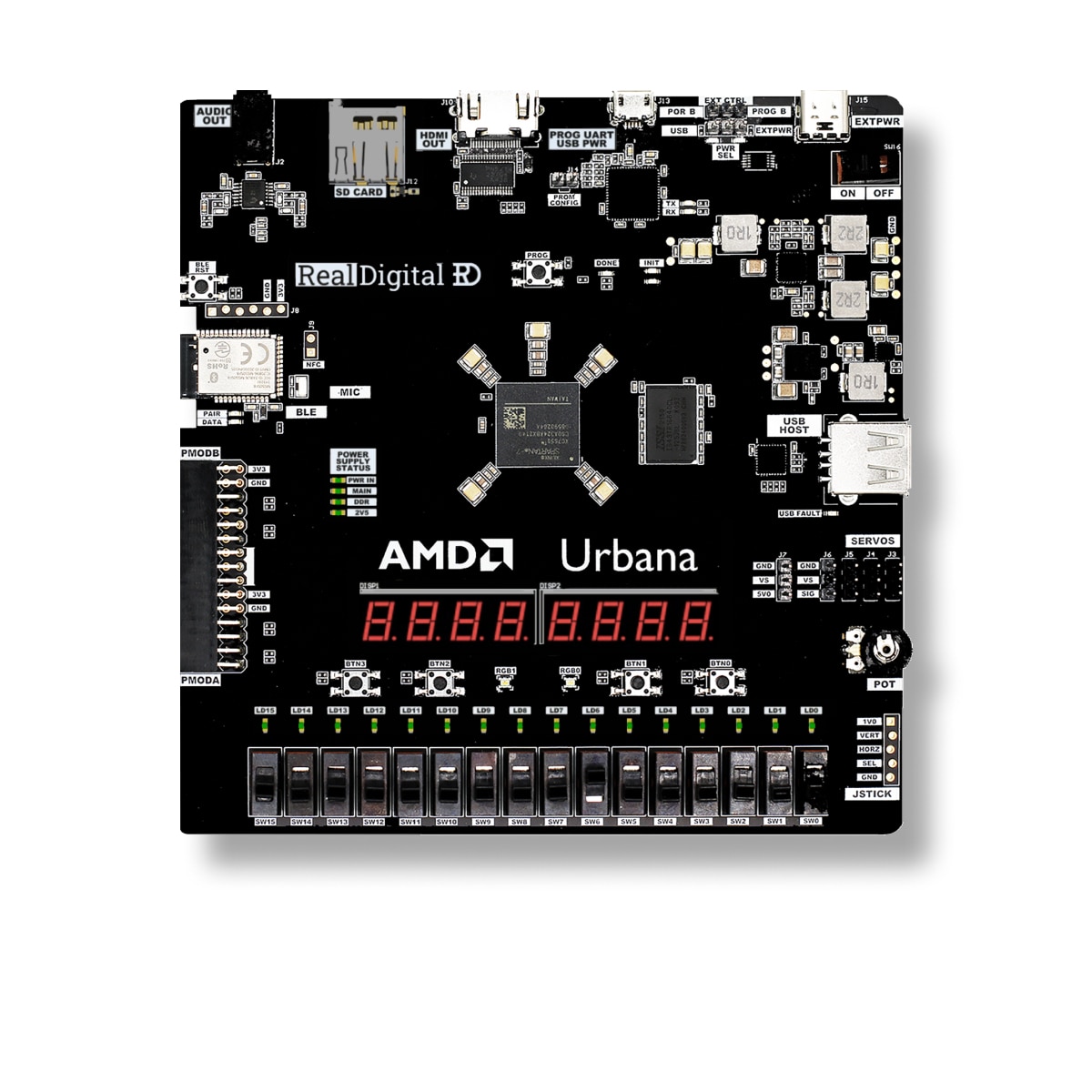

    RealDigital Urbana Board

RealDigital Urbana Board

by: RealDigital

The Urbana board is an FPGA-based educational platform designed to host a wide range of digital systems and microprocessor IP/core designs. Based on AMDs Spartan-7 FPGA, the Urbana board includes a 128Mbyte DDR3 memory, an SD card interface, a Bluetooth radio, a USB2 host, and many other features and devices. A free, full-featured version of AMD’s CAD tools can be used for design entry, simulation, synthesis, and FPGA programming, and a single USB connection provides power, a UART/COM port, and a programming port.

  • Price: $159.00

Purchase from our partner: RealDigital


What's included

  • The board featuring AMD Spartan 7 FPGA

Contact AMD University Program with any questions.

Suggested Use of this Board

  • Exercises ranging from a simple digital circuit to complex system
  • Designing combinatorial/sequential circuits
  • Design circuits which require up to 16 LEDs output
  • Design circuits which require up to 16 switches input
  • Digital circuits whose output can utilize two banks of four 7-segments displays
  • Circuits which can use up to four servo connectors (conventional or continuous rotation)
  • System that requires two Pmod modules

  • Specifications

    FPGA
    • Xilinx Spartan-7 XC7S50-CSGA324 FPGA
    Memory
    • 1Gbit (128MB) DDR3 memory (64M x 16)
    • 16MB QSPI
    I/O Interfaces
    • USB port for power, programming and UART/COM port
    • USB2 host port
    • Bluetooth Low Energy (BLE) radio
    Audio
    • Audio out (PWM)
    • Digital (PDM) micrcophone
    Video
    • HDMI out (up to 1080p)
    GPIO
    • 1 Pmod+ connector (2 Pmods)
    • 8-digit seven-segment display
    • 16 discrete LEDs
    • 2 RGB LEDs
    • 16 slide switches
    • 4 pushbuttons
    • Four servo motor connectors
    • Joystick header
    • On-board ADC with thumbwheel potentiometer
