General Specifications
- Device
AMD Versal™ HBM XCV80 adaptive SoC device
- Device Resources
2.6M Look-up tables (LUTs)
10,848 DSP slices
132 Mb Block RAM
541 Mb UltraRAM
- HBM Capacity
32 GB HBM2e DRAM (2x 16 GB stacks)
820 GB/s peak bandwidth
- Integrated Connectivity Cores¹
3x 400G High-Speed Crypto Engines supporting bulk crypto, IPsec, and MACsec
6x 100G Multirate Ethernet MAC
3x 600G Ethernet MAC
1x 600G Interlaken
- Processing Subsystem
Dual-core Arm® Cortex®-A72 application processor
Dual-core Arm Cortex-R5F real-time processor
Platform management controller
- Onboard Memory
4 GB of onboard SDRAM for Arm processor management
- PCIe Interface
PCIe® Gen4 x16 or 2x Gen5 x8
- Transceivers
68 GTYP transceivers (32.75 Gb/s)
60x (56 Gb/s) or 30x (112 Gb/s) GTM PAM4 transceivers
- Memory Expansion
32 GB DDR4 expansion DIMM slot
- Network Interfaces

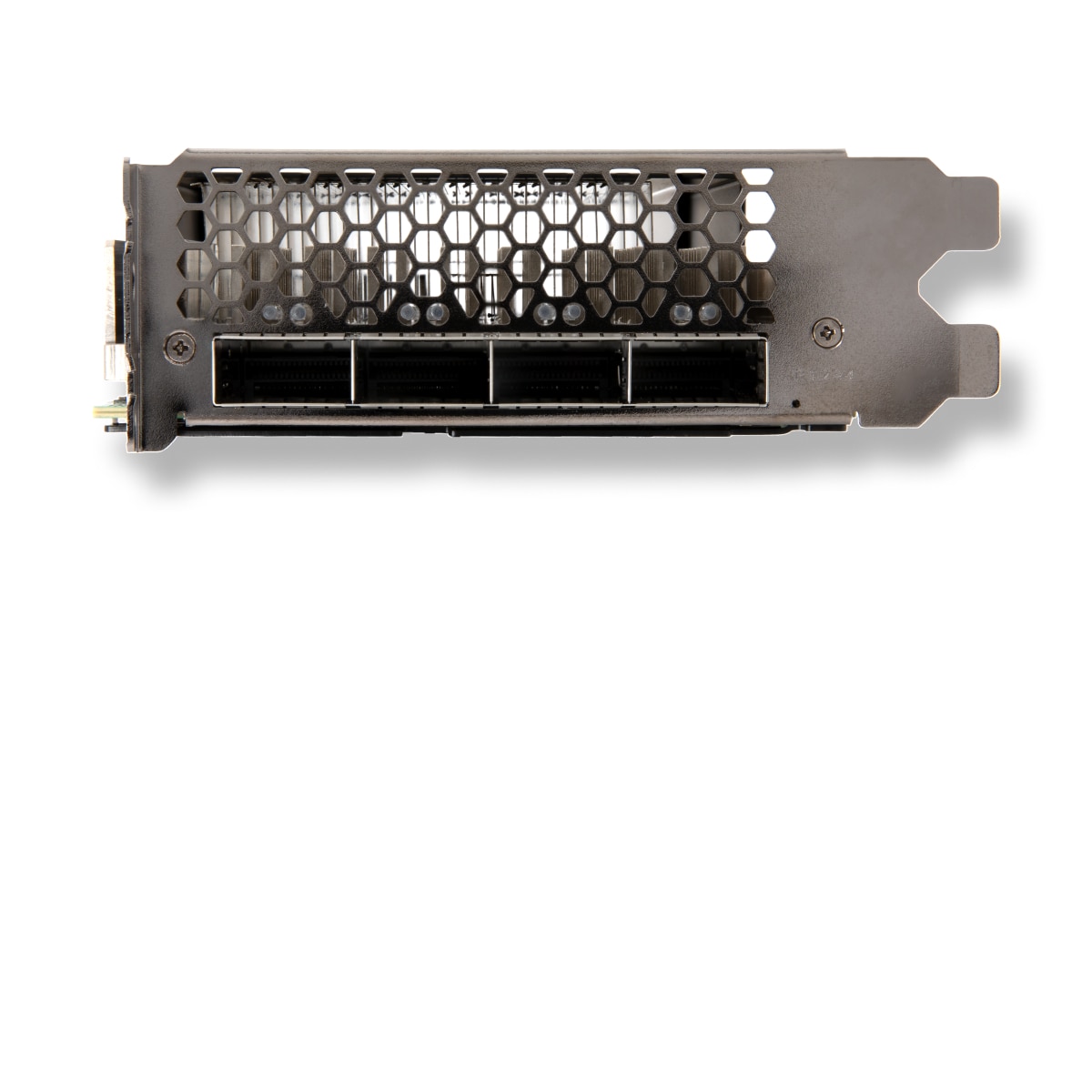

4x QSFP56 optical ports
(2x 100G or 4x 10/25/40/50G per port)
- PCIe® Interface and Expansion
Mini Cool-Edge I/O (MCIO) expansion connectors over PCIe Gen5
- Form Factor
Full-Height, ¾ Length (FH¾L)
Dual-slot
- Power and Thermal²
Up to 190W TDP, passive cooling
-
Image Zoom
-
Image Zoom
-
Image Zoom
-
Image Zoom
-
Image Zoom
-
Image Zoom

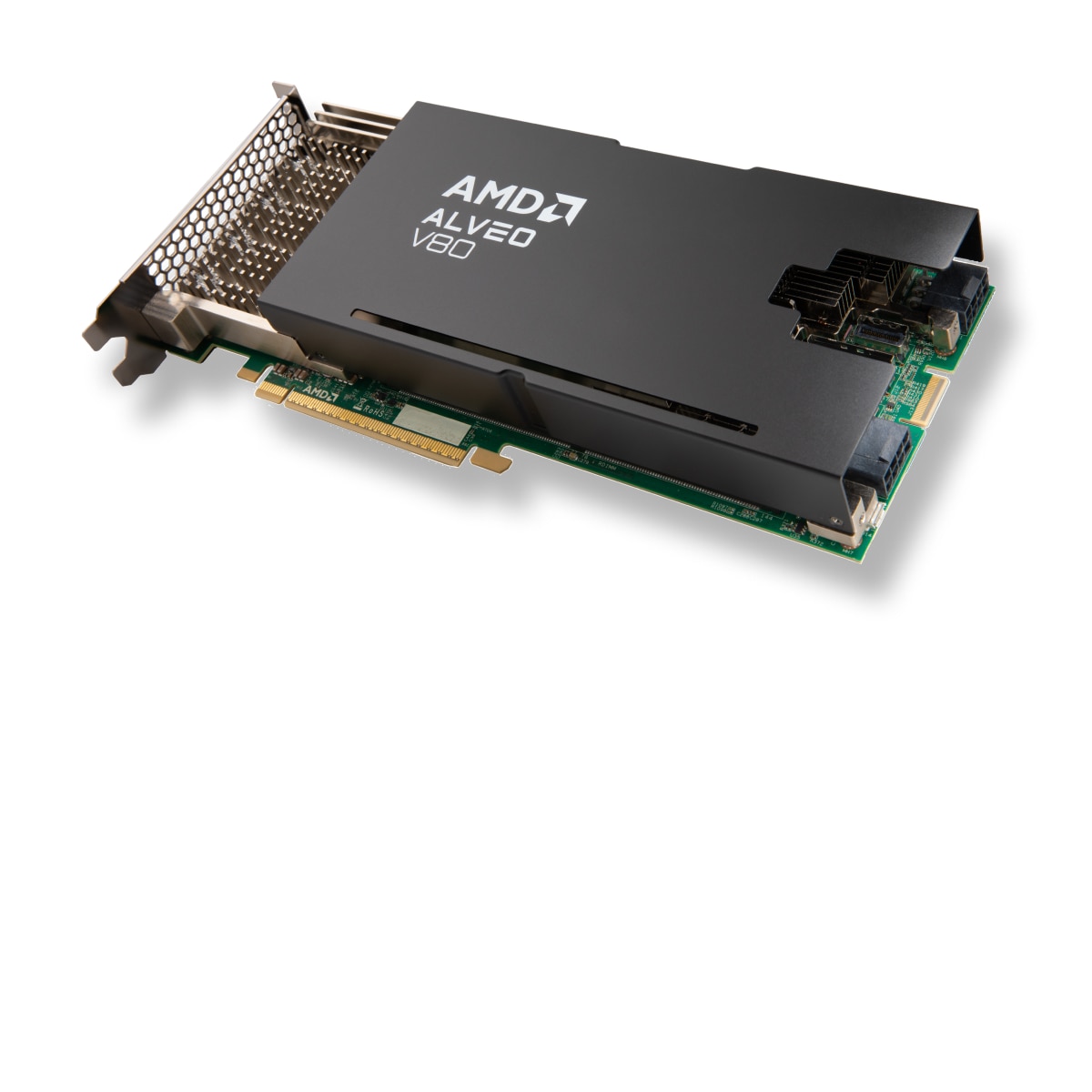

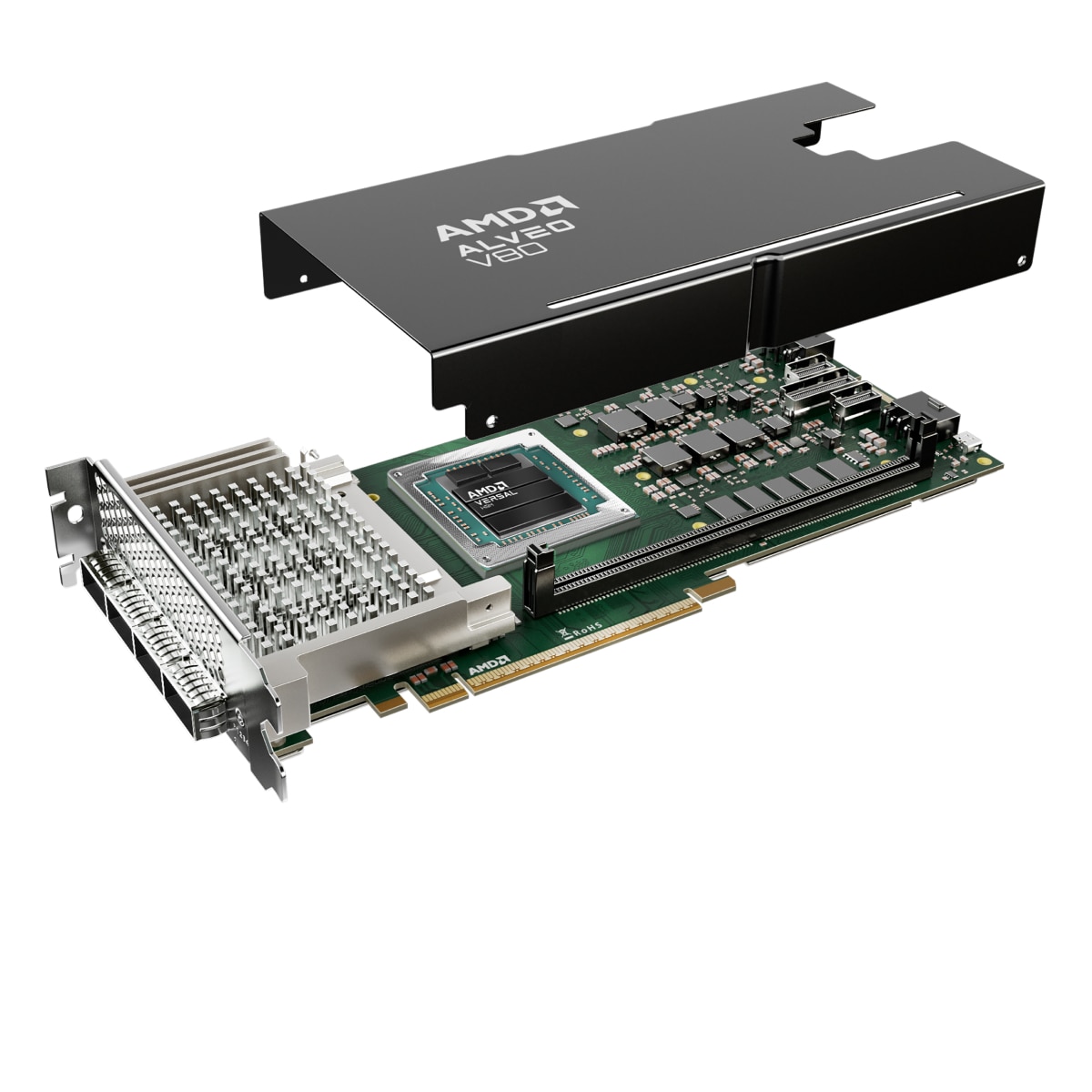

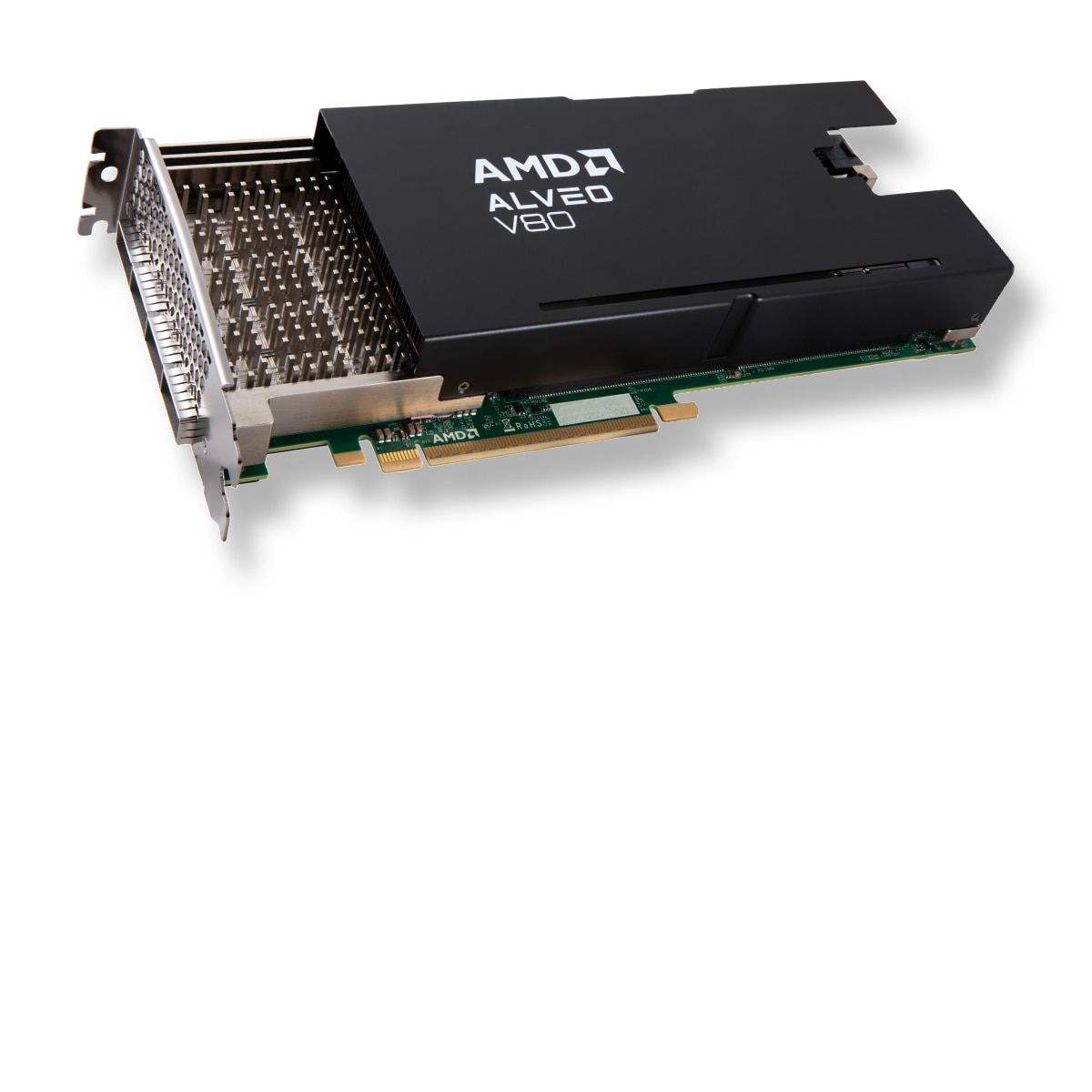

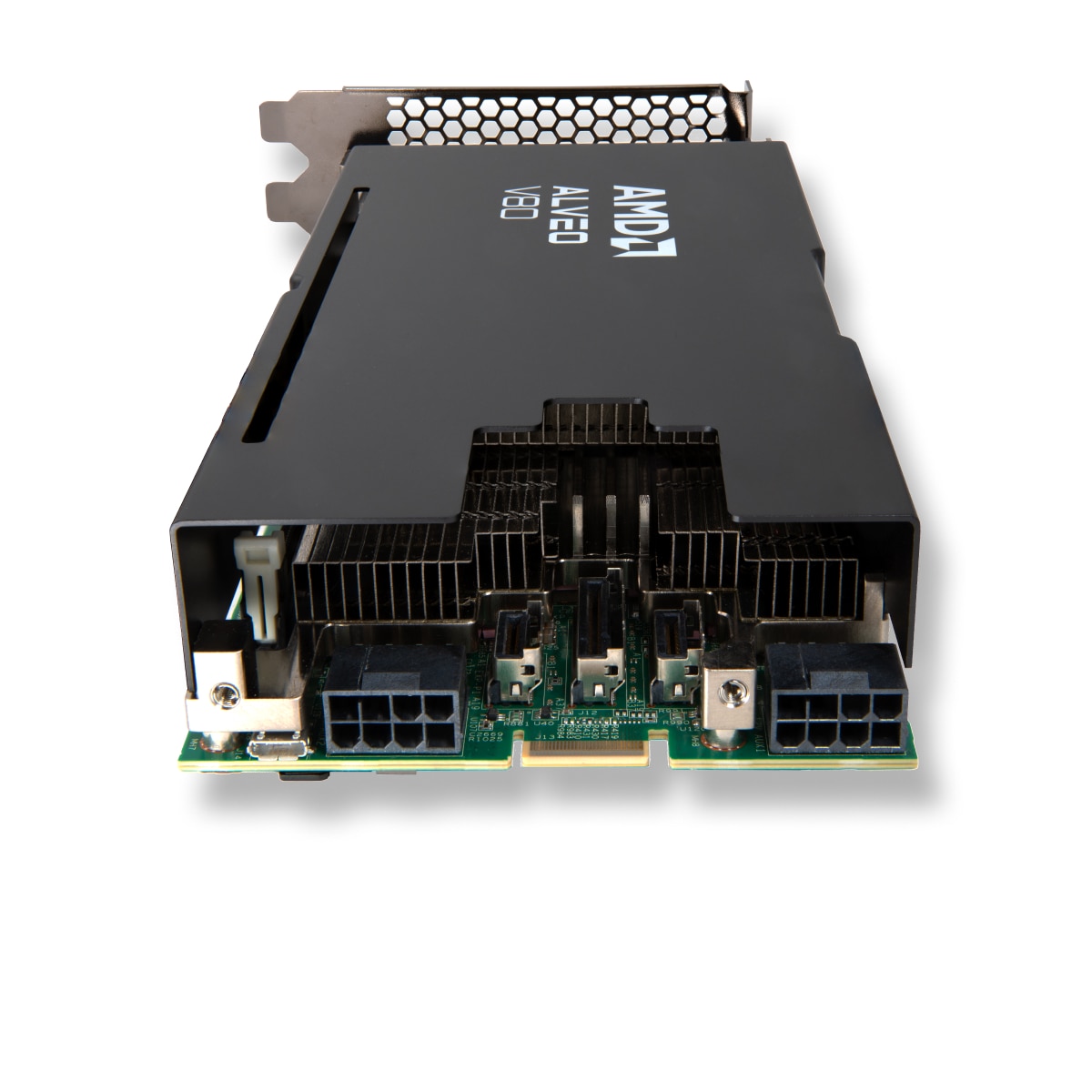

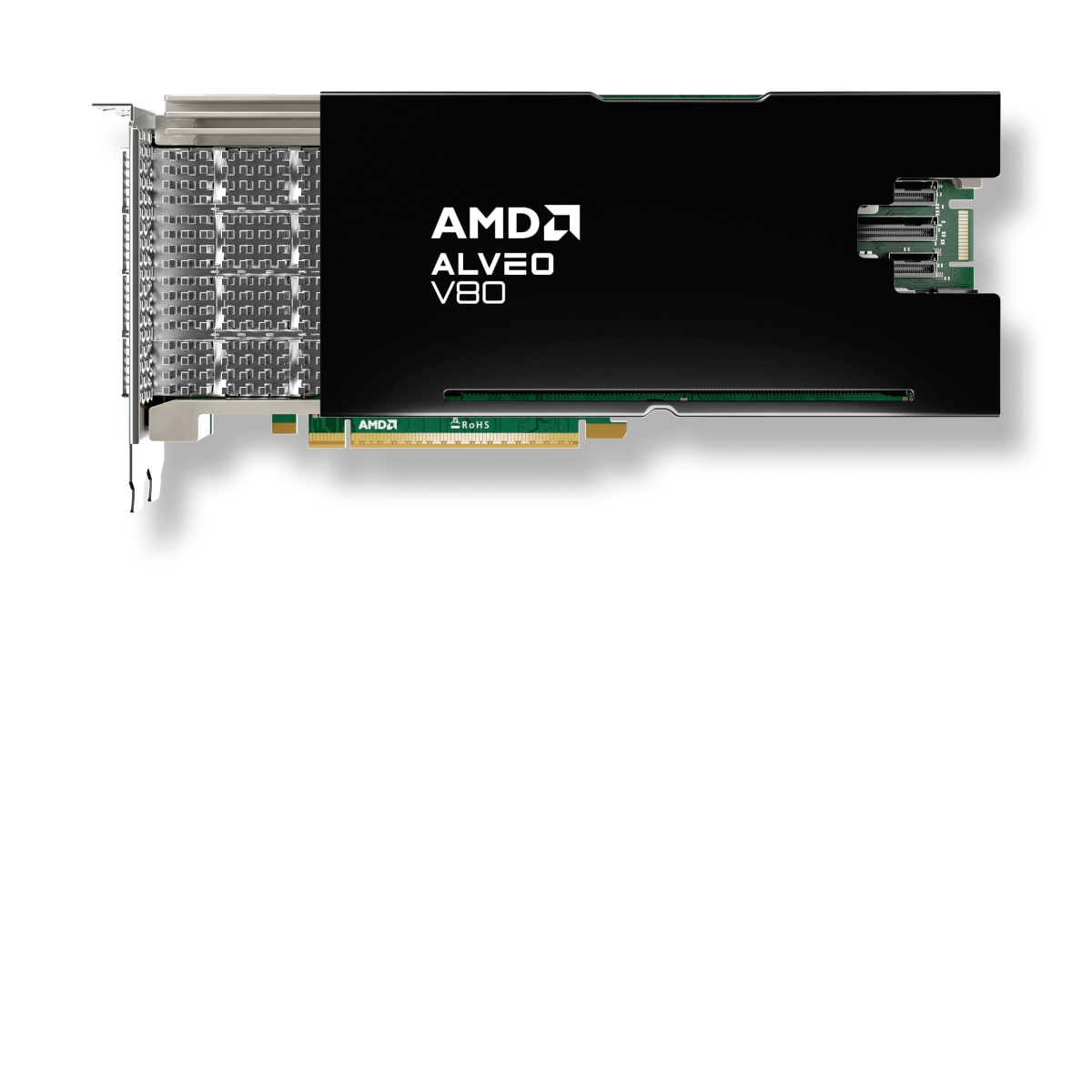

AMD Alveo™ V80 Compute Accelerator Card
The AMD Alveo™ V80 accelerator card is an HBM-enabled compute accelerator card based on the 7nm Versal™ adaptive SoC architecture, designed for memory intensive workloads ranging from HPC, data analytics, network security, sensor processing, computational storage, and FinTech.
