Tried. Trusted. Long Lasting.
With typical lifespans extending well past 15 years, you can depend on AMD devices for the life of your design—extending AMD 7 Series FPGAs and adaptive SoCs through 2040 and AMD UltraScale+™ FPGAs and adaptive SoCs through 2045.
AMD Zynq™ 7000 XQ SoCs Product Advantages
Aerospace and Defense development teams are challenged to deliver increased functionality, while simultaneously delivering progressively smaller systems and portable hand-held devices. AMD Zynq™ 7000 SoC devices are ideal for applications requiring advanced system control tightly coupled with sophisticated digital signal processing. Whether to maximize battery life or expand functionality, consolidating designs on fewer chips can result in breakthroughs. Based on the industry’s first SoC, the ruggedized defense-grade Zynq 7000 XQ family redefines the possibilities with unprecedented levels of programmable integration. The flexibility of the on-chip programmable logic provides a cost-effective solution for meeting current security mandates and other integration sensitive requirements that present moving targets for system designers
Programmable Systems Integration
- Replace ASIC/ASSP processors in existing systems
- Industry standard Arm® dual-core Cortex®-A9 MPCore™
Increased System Performance
- Eliminate ASSP-FPGA bottleneck
- State-of-the-art 28 nm process performance / size
BOM Cost Reduction
- Multiple processing solution in one device
- Reduce components, power supplies and simplify PCB design
Total Power Reduction
- Advanced low power 28 nm logic
- Low overall system power for integrated SDR platforms
Accelerated Design Productivity
- Flexible and scalable platform, comprehensive ecosystem of tools, OS and IP
Product Table
Processing System (PS)
| Features | All Devices |
|---|---|
| Processor Core | Dual Arm Cortex-A9 MPCore with CoreSight™ |
| Maximum Frequency | 733 MHz |
| External Memory Support | DDR3, DDR3L, DDR2, LPDDR2 |
| Key Peripherals | 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO |
Programmable Logic (PL)
| XQ7020 | XQ7030 | XQ7045 | XQ7100 | |
|---|---|---|---|---|
| Logic Cells (K) | 85 | 125 | 350 | 444 |
| Block RAM (Mb) | 4.9 | 9.3 | 19.1 | 26.5 |
| DSP Slices | 220 | 400 | 900 | 2020 |
| Maximum I/O Pins | 128 | 100 | 212 | 250 |
| Available M-temp -55°C to +125°C | Yes | Yes | Yes | Yes |
Get Started
Jump-start your design cycle and achieve fast time-to-market with the proven hardware, software support, tools, design examples, and documentation available for the kit.

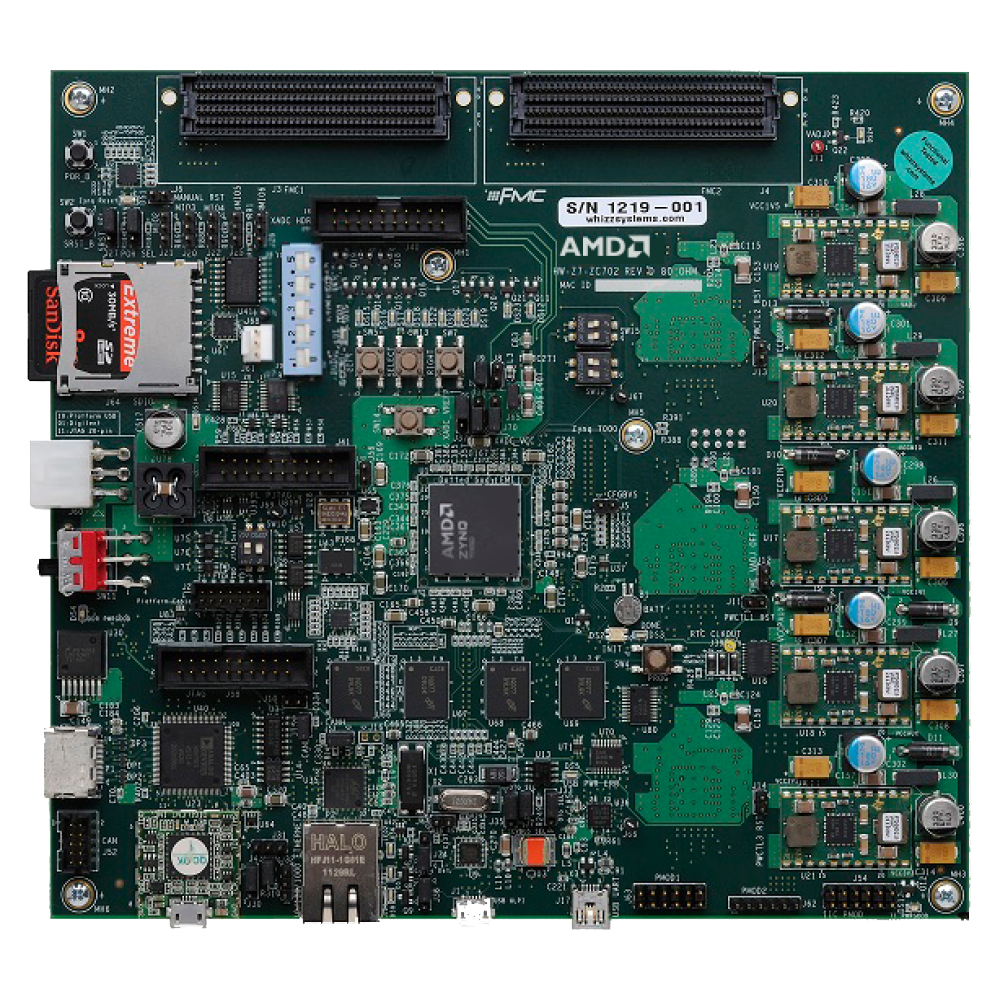

Zynq 7000 SoC ZC702 Evaluation Kit
The Zynq 7000 SoC ZC702 Evaluation Kit includes all the basic components of hardware, design tools, IP, and pre-verified reference designs including a targeted design, enabling a complete embedded processing platform.
Support & Resources
UltraFast™ Embedded Design Methodology Guide
This guide is organized around important functional areas that map to specific skill sets within development teams.
