Overview

Verification is critical to ensure the functionality, performance, and reliability of the final FPGA implementation. Vivado’s verification features enable efficient validation of design functionality empowers engineers to efficiently locate and resolve issues within complex FPGA designs.

Features

Simulation Flow

AMD Vivado™ Design Suite provides an array of design entry, timing analysis, hardware debug, and simulation capabilities all encompassed in a single state of the art integrated design environment (IDE). This flow enables both the integrated and enterprise verification needs for all supported simulators.

Vivado enables behavioral, post-synthesis and post-implementation (functional or timing) simulations for the fully integrated Vivado Simulator and 3rd party HDL simulators. Time spent on simulation early in the design cycle helps identify issues early and significantly reduces turnaround times compared to later stages of the flow.

To aid flexibility in user verification environments, Vivado provides support for both an integrated environment as well as provides scripts to use with external verification setups.

The Vivado IDE supports all major simulators in integrated mode for interactive simulation users and script mode for advanced verification engineers.

Aldec - Active-HDL® & Riviera-PRO®, Cadence Xcelium® Simulator, Siemens EDA – ModelSim® & Questasim®, Synopsys VCS® and AMD Vivado Simulator

Image Zoom

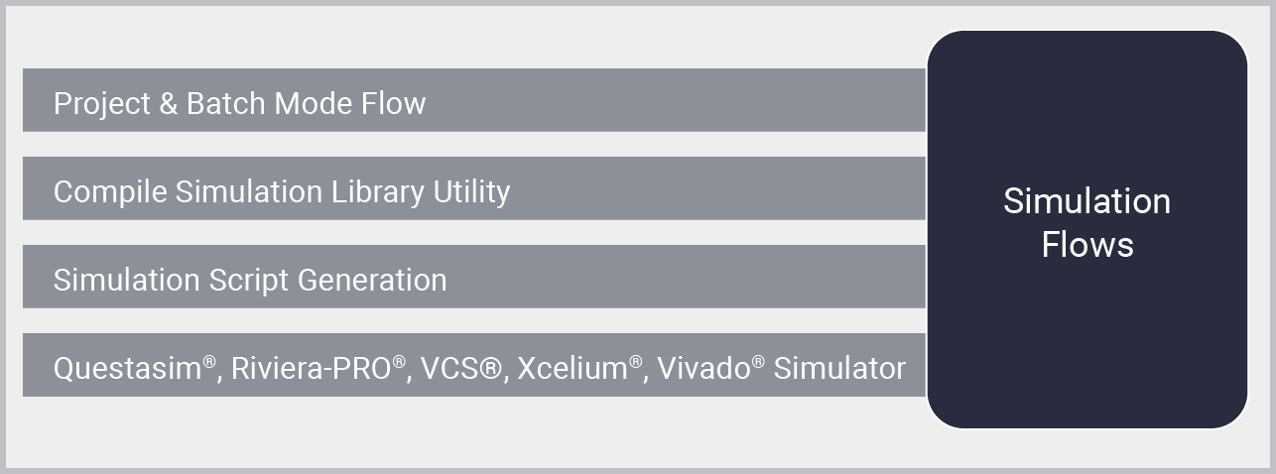

AMD Vivado Simulation Flows

  • Key Features

    Simulation Features
    • Simulation flows provide the ability to compile simulation libraries for the supported simulators in the users’ environment to enable re-use of compiled libraries.
    • Ability to simulate and verify design integrity at different stages of the design process such as behavioral, post -synthesis functional and timing simulation and Post-implementation functional and timing simulation.
    • Unified simulation integration using consistent 3 step process (compile, elaborate, simulate) for all simulators
    • Simulation script generation for enterprise 3rd party simulators to enable verification using users own environments.

Vivado Simulator

Vivado™ Simulator is a feature-rich, mixed-language simulator that supports Verilog, SystemVerilog, and VHDL language. Vivado Simulator is included is part of Vivado and it is available at no additional cost. It does not have a design size, instances, or line limitation and it allows to run of unlimited instances of mixed-language simulation using a single Vivado license.

Vivado Simulator supports both Windows® and Linux® operating systems with powerful debugging features that are aimed to address the verification needs of AMD customers.

Vivado Simulator is a hardware description language (HDL) event-driven simulator that supports behavioral and timing simulation for single language and mixed language designs.

Image Zoom

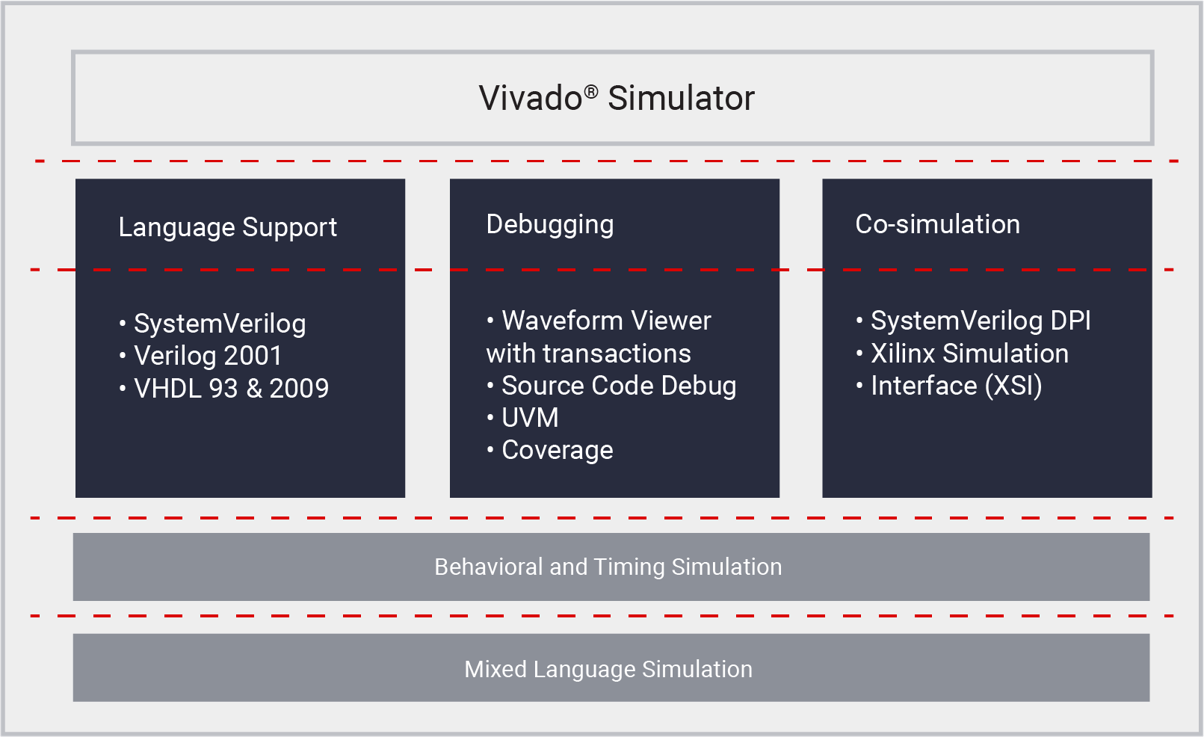

AMD Vivado Simulator

  • Key Features

    Language Support
    • SystemVerilog (Including constraint randomization and functional coverage)
    • Verilog 2001
    • VHDL 93 and VHDL 2008
    Debugging and Verification
    • Advanced waveform viewer that supports digital/analog waveform & transaction view
    • Comprehensive debugging tools such as breakpoints, subprogram debug and cross-probing
    • Support for UVM 1.2 library
    • Functional Coverage
    • Support both GUI and script mode
    Co-simulation
    • Direct programming interface (DPI)
    • Xilinx simulation interface (XSI)

Verification IP

Verification IP (VIP) portfolio by AMD provides users with the ability to verify and debug their designs in a simulation environment easily, quickly, and more effectively. Verification IP cores are purpose built verification models whose goal is to ensure correct interoperability and system behavior. Companies in the EDA industry develop VIP for standards based interfaces (AXI, PCIe, SAS, SATA, USB, HDMI, ENET, etc..). Advantages to using VIP include improved design quality and reduced schedule time due to re-usability.

AMD VIP cores are SystemVerilog based simulation models that provide full AXI protocol checking with ARM licensed assertions, support all major simulators, and are included in Vivado at no cost. AMD provides VIP for use in designs that use AXI component level (AXI-MM, AXI_Stream) and Processing System (Zynq™ 7000) designs.

  • Key Features

    Traffic Generator

    AXI Traffic Generator for AXI4, AXI4-Stream, AXI4-Lite

    AXI VIP & AXI Stream VIP

    Full AXI & AXI Stream Protocol Checker support

    Zynq 7000 VIP & Zynq UltraScale+™ MPSoC VIP

    Functional simulation support for Zynq 7000 & Zynq UltraScale+ MPSoC based application

    Versal™ Control, Interfaces, and Processing System VIP (CIPS VIP)

    Functional simulation support of Control, Interfaces, and Processing System (CIPS) IP
