The AMD Advantage for Developing FPGA-based Prototyping Systems
FPGA-based prototyping is the process of debugging, verifying, and validating part or all of a system on one or more adaptive SoCs or FPGAs. FPGA-assisted prototyping reduces time to market by enabling hardware and software co-validation before physical parts are available.
AMD delivers the industry’s largest capacity adaptive SoC and FPGA1 with improved I/O and transceiver latency to maximize system performance.
World’s largest logic capacity adaptive SoC1
- Reduces the number of partitions and simplifies board layout
- Enables 2X larger platform capacity2
- Enables 2X higher system performance3
AMD Vivado™ ML implementation tools
- Reduces compile time
- Improves QoR
- ASIC-like clocking efficiently maps complex ASIC and SoC clock trees
High-bandwidth and low-latency I/O and transceivers
- Efficient pin multiplexing between adaptive SoCs
- Reduces latency across partitions for improved system performance
- Industry support with our High-Speed Transceiver Pin Multiplexing IP
Full Visibility Debug Solutions
- Re-entrant debug probe modifications for quick debug turnaround
- Supporting configuration-based readback, writeback, and state capture
- High-speed debug over PCIe®
- Deep storage ILA to offload capture data to external memory
Design Example

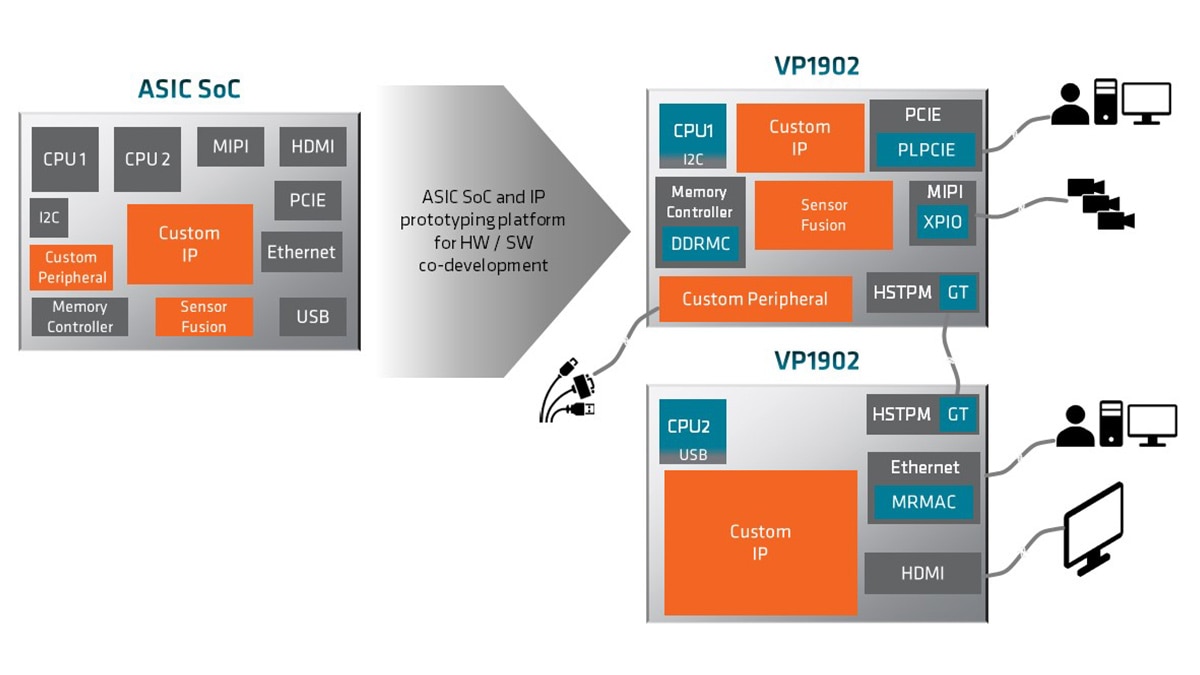

Ideal Target for ASIC, SoC, and IP Prototyping
- On-chip dual-core Arm A-72 and dual-core R5 processors for HW/SW co-development
- Extensive IP ecosystem for integrating at-speed peripheral stimulus
- Integrated hard blocks to save power and resource utilization
Portfolio
AMD Versal™ Premium VP1902 Device: World’s Largest Adaptive SoC4
The AMD Versal™ Premium VP1902 adaptive SoC is the first emulation-class device to feature a scalar processing subsystem on-chip, which enables a wide range of control and stimulus generation use modes for SW/HW firmware development and system bring-up.
The VP1902 device doubles device capacity2 compared to the Virtex™ UltraScale+™ VU19P device in order to fit larger IP and design subsystems. The on-chip A72 Arm® processor enables a wide variety of prototyping use cases for software and hardware co-development. Our XPIO and MIPI D-PHY enable a wide variety of at-speed peripheral stimulus. These silicon features combine to provide an ideal solution for tackling the prototyping demands of cutting-edge ASIC, IP, and SoC development.
Featured AMD Adaptive Computing Partners
Get Started
Prototype with AMD Versal Premium
AMD Versal™ Premium VP1902 Device: World’s Largest Adaptive SoC
- 2X higher logic density2 compared to the AMD Virtex™ UltraScale+™ VU19P device
- 2X aggregate I/O bandwidth5 and 2.3X transceiver bandwidth6 for scalability
- Reduced I/O latency and two-by-two SLR array for improved system performance
AMD VivadoTM ML Design Suite
The AMD Vivado™ ML design suite delivers a state-of-the-art development experience with new implementation features designed to improve compile time and QoR.
Support & Resources
Contact Sales
Our sales team is here to support you in making the best technology decisions based on your specific needs.
