Build for The Most Advanced PC for Gaming , Creating, or Business
Put an AMD Socket AM5 motherboard at the heart of your rig to dominate the games and day-to-day business applications you love today and tomorrow. Be ready for fast “Zen 5” performance of AMD Ryzen™ 9000 Series processors, along with AMD Ryzen™ 8000 and 7000 Series processors —plus whatever comes next—with fast DDR5 memory and PCIe® 5.0 on select motherboards. Choose your chipset, start your build, and buckle up.
Chipsets
With the AMD Ryzen 600 and 800 series chipsets, all AMD Socket AM5 motherboards are compatible with all AMD Socket AM5 processors. That means you can choose any Socket AM5 board for AMD Ryzen 7000, 8000, and 9000 compatibility. (A BIOS update may be required for Ryzen 8000 and 9000 series processors on 600 series boards.)

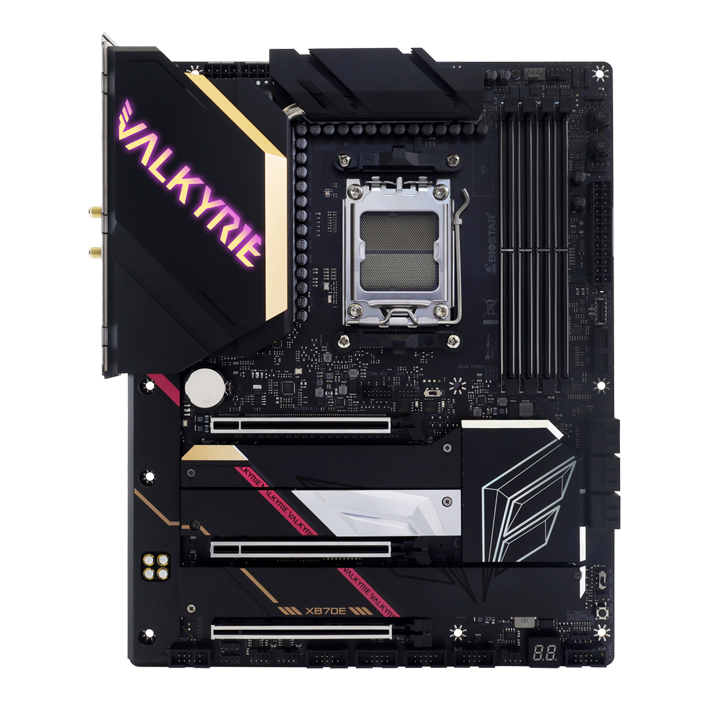

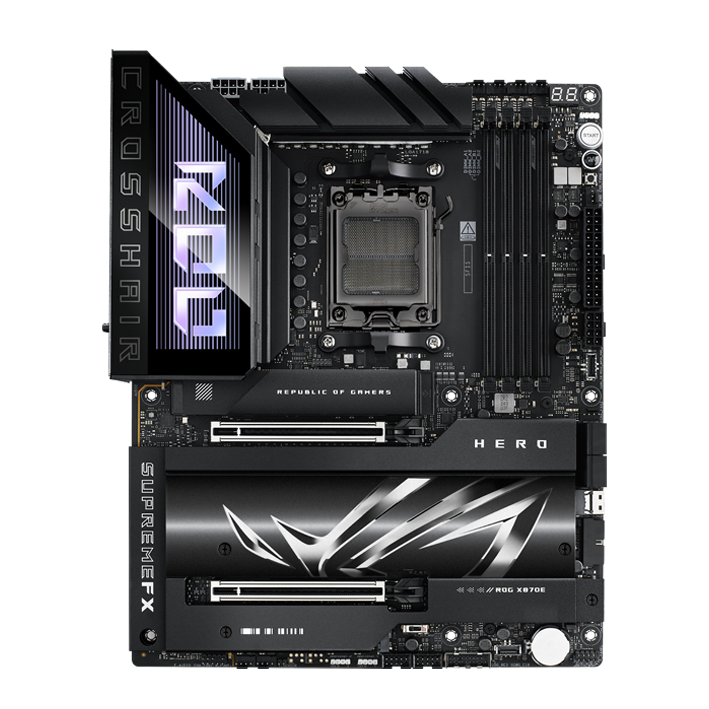

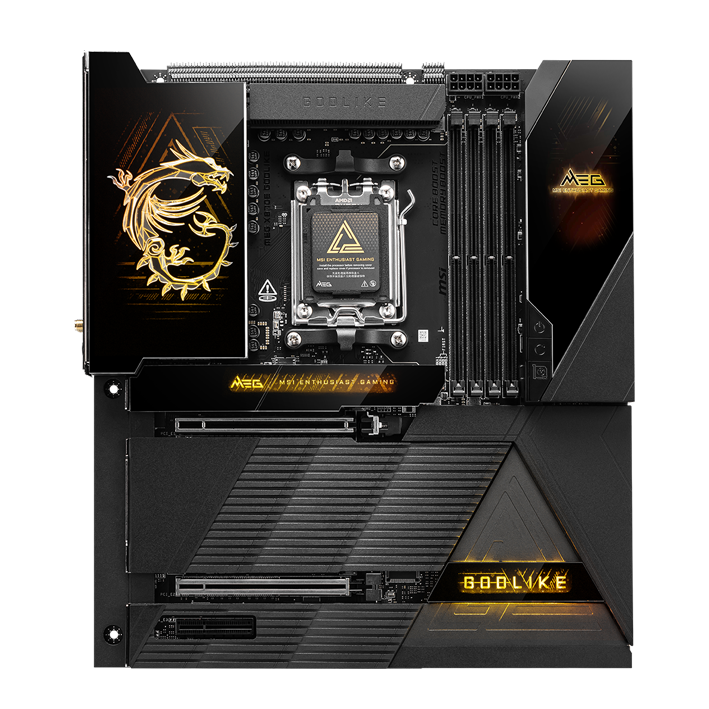

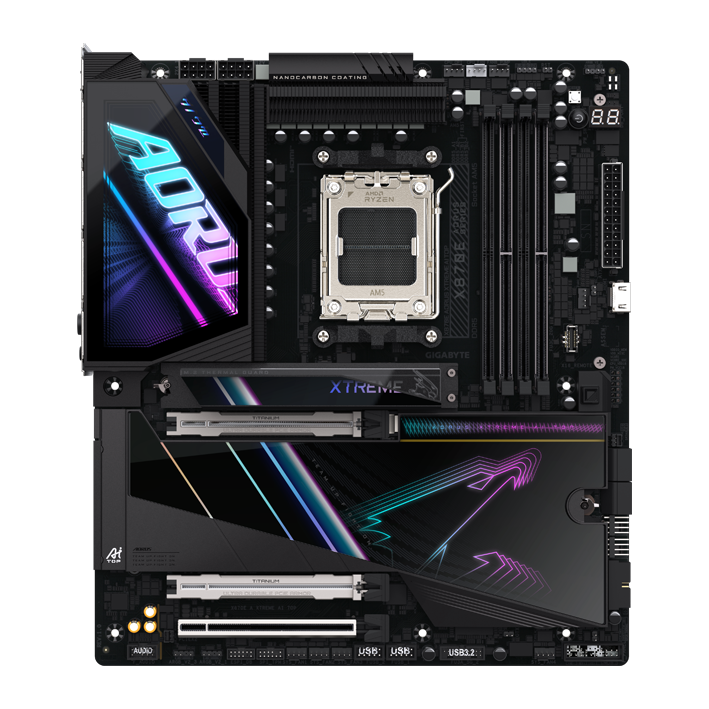

When only the fastest will do, an AMD X870E motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X870E motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
For high-performance customization, build your PC with an AMD X870 motherboard for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Fully overclockable, with USB 4.0 onboard, faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for NVMes, set yourself up for extreme gaming and creating with an X870 motherboard.
The AMD B850 platform is the foundation for next-generation gaming and content creation experiences. Featuring enhanced overclocking capabilities, DDR5 memory support with AMD EXPO™ Technology, and PCIe® 5 connectivity for NVME storage, the AMD B850 platform is ready to power your desktop for years to come.
Designed to deliver the essentials for gamers and creators, the AMD B840 Platform is your entry point into modern desktop experiences, with support for DDR5 memory overclocking with AMD EXPO™ technology1, and fast I/O standards for responsive connectivity between devices. Focused on what you need, the AMD B840 platform is engineered to deliver the performance and value you need in a modern desktop.
The ultra-high performance AMD X670E motherboard is made for high-performance overclocking. Featuring dual-channel DDR5 memory, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play demanding games and deliver your demanding projects with the impressive performance of an AMD X670E motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
The AMD X670 motherboard for AMD Ryzen™ 9000, 8000, and 7000 Series processors is a great option for a high-end PC. With dual-channel DDR5 memory, AMD EXPO™ technology and PCIe® 5.0 support for NVMes, you’re ready for any workload.
If you are a serious gamer or creator who values overclocking features, you will want an AMD B650E motherboard. With PCIe® 5.0 support for your NVMe drive and DDR5 support featuring AMD EXPO™ technology, AMD B650E is packed with features that help speed up your game.
An AMD B650 motherboard is your foundation for must-have gaming performance. Usher in the new age of overclockability, DDR5 memory, AMD EXPO™ technology, and optional PCIe® 5.0 support for an NVMe drive with an AMD B650 motherboard.
If you need essential performance, an AMD A620 / A620A / PRO600 motherboard is your perfect starting point. Fast DDR5 memory is supported with EXPO™ technology for memory overclocking on select chipsets, in an efficient low-power platform that really delivers. PRO 600 and PRO 665 are geared toward practical consumer and commercial users who need a simple, small solution. They are available through business system suppliers. Check with your manufacturer for details.
Specifications
| Direct Processor PCIe® Lanes | Chipset-Provided USB and SATA | |||||||||
GRAPHICS |
NVMe (PLUS PCIe™ GPP, UP TO) |
USABLE PCIe® LANES TOTAL/PCIe® 5.0(UP TO) |
RYZEN PROCESSOR OVERCLOCKING ENABLED |
DDR5 MEMORY OVERCLOCKING ENABLED (Supports AMD EXPO™) |
SUPERSPEED USB 5Gbps (UP TO) |
SUPERSPEED USB 10Gbps (UP TO) |
SUPERSPEED USB 20Gbps (UP TO) |
MAXIMUM SATA PORTS (OR PCIe® 3.0, UP TO) |
USB 4.0 | |
| X870E | 1x16 or 2x8 PCIe® 5.0 |
1x4 PCIe® 5.0 plus 4x PCIe® GPP |
44/24 | Yes | Yes | 2 | 12 | 2 | 8 | STANDARD |
| X870 | 1x16 or 2x8 PCIe® 5.0 |
1x4 PCIe® 5.0plus 4x PCIe® GPP | 36/24 | Yes | Yes | 1 | 6 | 1 | 4 | STANDARD |
| B850 | 1x16 or 2x8 PCIe® 4.0 |
1x4 PCIe® 5.0 | 36/4 | Yes | Yes | 1 | 6 | 1 | 4 | Optional |
| B840 | 1x16 PCIe® 4.0 |
1x4 PCIe® 4.0 | 34/0 | No | Yes | 2 | 2 | - | 4 | Optional |
X670E |
1x16 or 2x8 PCIe® 5.0 |
1x4 PCIe® 5.0 plus 4x PCIe® GPP |
44/24 |
Yes |
Yes |
2 |
12 |
2 |
8 |
Optional |
X670 |
1x16 or 2x8 PCIe® 4.0 |
1x4 PCIe® 5.0 plus 4x PCIe® GPP |
44/8 |
Yes |
Yes |
2 |
12 |
2 |
8 |
Optional |
B650E |
1x16 or 2x8 PCIe® 5.0 |
1x4 PCIe® 5.0 plus 4x PCIe® GPP
|
36/24 |
Yes |
Yes |
1 |
6 |
1 |
4 |
Optional |
B650 |
1x16 or 2x8 PCIe® 4.0 |
1x4 PCIe® 4.0 (PCIe® 5.0 Optional) |
36/0 |
Yes |
Yes |
1 |
6 |
1 |
4 |
Optional |
A620 / A620A |
1x16 PCIe® 4.0
|
1x4 PCIe® 4.0 |
32/0 |
No |
Yes |
2 |
2 |
- |
4 |
Optional |
PRO 665* |
1x16 or 2x8 |
1x4 PCIe® 4.0 (PCIe® 5.0 Optional) | 36/0 | No | No | 1 | 6 | 1 | 4 | Optional |
PCIe® 4.0 |
||||||||||
PRO 600* |
1x16 or 2x8 |
1x4 PCIe® 4.0 plus 4x PCIe® GPP | 28/0 | No | No | 0 | 0 | 0 | 0 | Optional |
PCIe® 4.0 |
||||||||||
*Only available through system suppliers. Check with your manufacturer for details.
