Overview
AMD offers solution platforms and meets aerospace and defense industry standards and form-factor solutions in collaboration with our ecosystem partners and through COTS offerings. Available platforms include FACE, HOST, SOSA, and more, 3U and 6U VPX solutions as well as customized and small form factor system-in-package (SiP) solutions.
Platforms
- COTS 3U & 6U VPX
- System-in-Package
- PCIe Accelerators & AI Cards
COTS 3U & 6U VPX
Explore AMD UltraScale and Versal architecture-based COTS platforms that satisfy customer requirements for rapid prototyping and system development with common aerospace and defense form-factors and comply with the latest industry standards.
Not seeing what you need here? Contact us: ad_marketing@amd.com

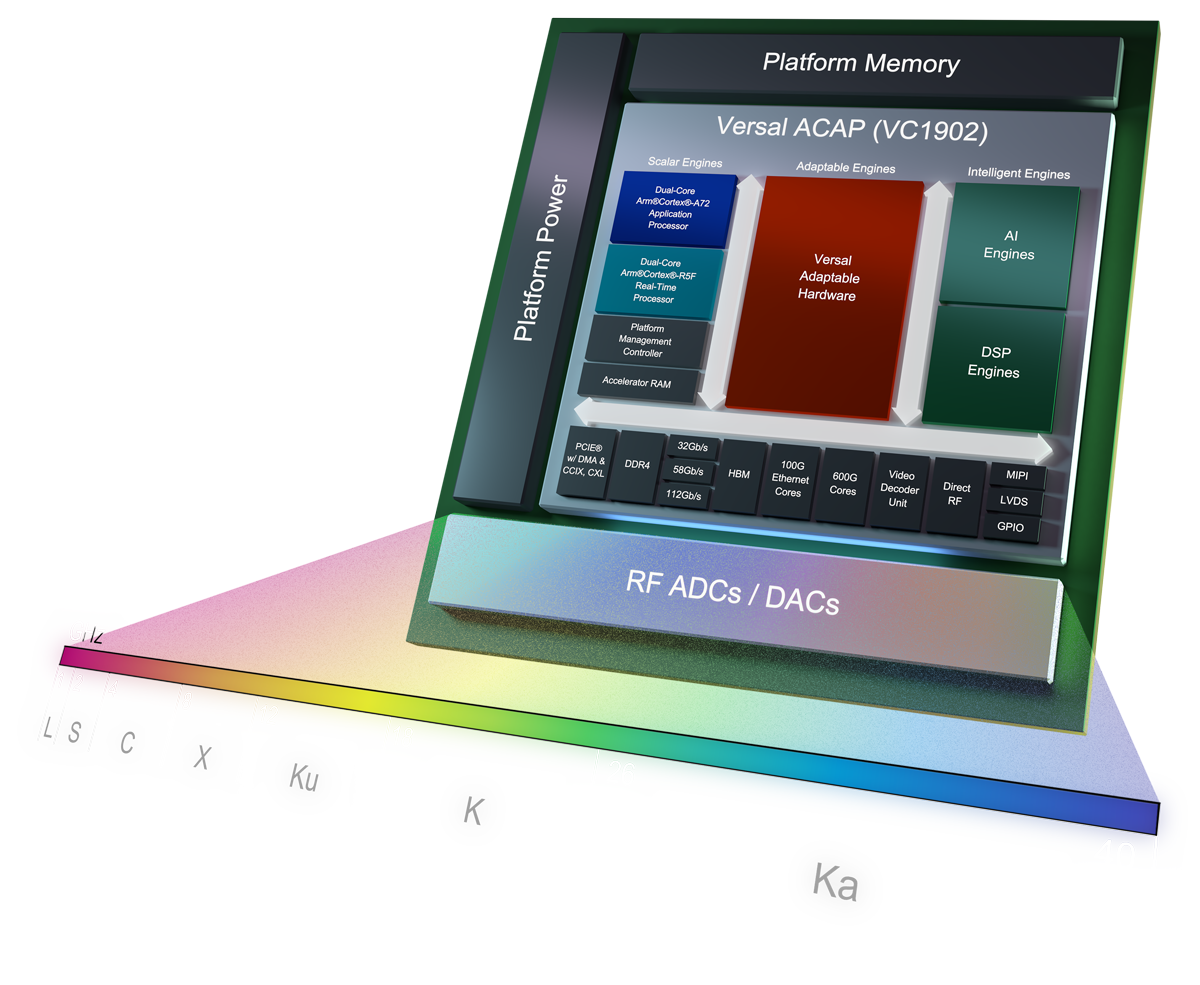

AMD Versal AI Core Enabled RF System-in-Package
Ultra-Wideband Direct RF Front-End Processor
The Mercury RFSiP integrates the Versal AI Core adaptive SoC with discrete data converters in a single package, combining direct RF signal processing capacity with massive DSP and AI compute in a small form factor. The SWaP -optimized platform delivers outstanding performance-per-watt for signal processing in communications, EW, and radar applications. Features:
- Versal AI Core VC1902, with up to 3.8/1+ TMACs Cint16/Cfp32
- 4x Ultra-wideband Tx/Rx channels,10bit, 64 Gsps per channel
- 36 GHz of analog bandwidth, with 4GHz IBW per channel
- 300+ Gbps of bandwidth for data offload, via PCIe Gen4 or Ethernet
- Vitis enabled platform infrastructure with BSP
- Integrated SWAP Optimized 47.5mm x 47.5mm SiP

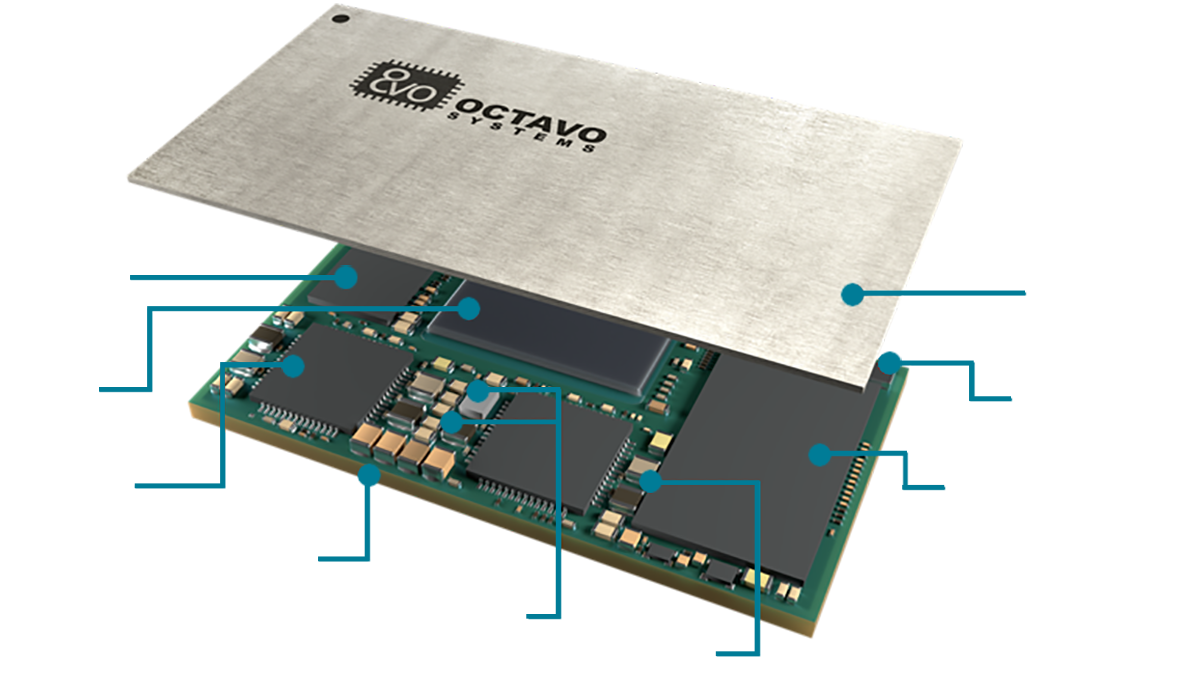

Octavo (OSDZU3) System-in-Package
Compact Easy-to-Use ZU3-Based System Controller
The OSZU3 integrates the AMD Zynq UltraScale+ MPSoC with supporting circuitry into a BGA Package providing a 60% size reduction as compared to a discrete chip-down custom solution. Developing with the OSDZU3 removes board-level complexity and is designed to reduce design effort by up to 9 months without sacrificing flexibility and performance.
- Integrates ZU3 MPSoC, power management, and necessary memories
- Access to all unused ZU3 I/O in the SiP BGA pinout
- Single 5V Vin generates all required power rails
- 1mm pitch BGA allows for low-cost PCB design rules
- Over 150 components integrated into 1 SiP
- Helps simplify supply chain
PCIe Accelerators and AI Cards
AMD Alveo™ cards offer a compelling solution for compute-intensive enterprise and environmentally controlled Government and Defense applications. Whether it is raw HPC or ML, Alveo enables you to address the solution while minimizing NRE of a custom chip-down solution. The Alveo V80 brings high-density programmable logic with HBM in a PCIe form factor to enable a broad range of performance computing with the standard form factor which is ideal for enterprise applications. VCK5000 is enabled with the first-generation AIE which is balanced for DSP and ML compute, and offered in the standard PCIe form factor.
Get in Touch
Contact an AMD sales representative.
