ACCA provides advanced software solutions for the architecture, engineering, and construction sectors. Their flagship product, Edificius is a robust 3D design software for architecture.
Cross-Platform. Open-Source.
AMD FidelityFX™ Super Resolution (FSR) boosts performance in professional applications while delivering optimized image quality.1
Architects and other design professionals can leverage FSR for PRO to boost graphics performance in design and visualization workflows such as real-time architectural rendering. FSR for PRO is a cross-platform open-source solution that offers broad hardware and software support on AMD and other vendors’ products.
Quality Settings
FSR offers four quality modes that boost frame rates while retaining as much image detail as possible. Each preset mode either prioritizes detail (image quality) or puts greater emphasis on frame rate (performance). The input resolution used by the FSR for PRO algorithm depends on the quality mode chosen by the user. For a 1440p output, where native resolution is 2560 x 1440, Ultra Quality mode would render at 1970 x 1108 (77% of native resolution) while providing a small performance gain. It then uses 1706 x 960 (66.6%) for Quality mode, 1506 x 847 (58.8%) for Balanced mode, and 1280 x 720 (50%) for Performance mode which also offers the greatest performance boost.
The chart below shows FSR quality setting modes in ACCA® Edificius, a robust 3D design software for architecture.
FSR Quality Settings
100%
77%
66%
58.8%
50%
Advantages
Frame rate plays a critical role in user experience. Taxing rendering operations such as hardware ray tracing, greater image detail or larger model sizes can create a larger workload than the hardware can handle. This can cause frames to take longer to render and graphics to look choppy. Higher frame rates mean a faster and smoother display quality and better viewing experience. Getting a faster CPU, more RAM, or a newer graphics card may help achieve higher frame rates. However, FSR for PRO can achieve higher frame rates without major changes to the system. Consider these advantages:
For End Users
Performance
Up to 3.5x the performance in select applications when running on 1440p monitor in “Performance” mode.
Image Quality
Cutting-edge algorithm delivers near native resolution quality.
Broad Support
Scales across a broad spectrum of new and older products, including integrated graphics.
For Developers
Cross-Platform
Supports a broad spectrum of graphics products including competitor’s graphics solutions.
Uses Industry Standards
Based on industry standards and is fully open source.
Does not require specialized graphics hardware.
Easy to Integrate
Broad API support for: DirectX 11, 12 and Vulkan.
Integrated into popular game engines like Unreal Engine 4 and Unity.
Results
AMD Radeon™ PRO W6800 1440p Monitor with Ray Tracing Enabled

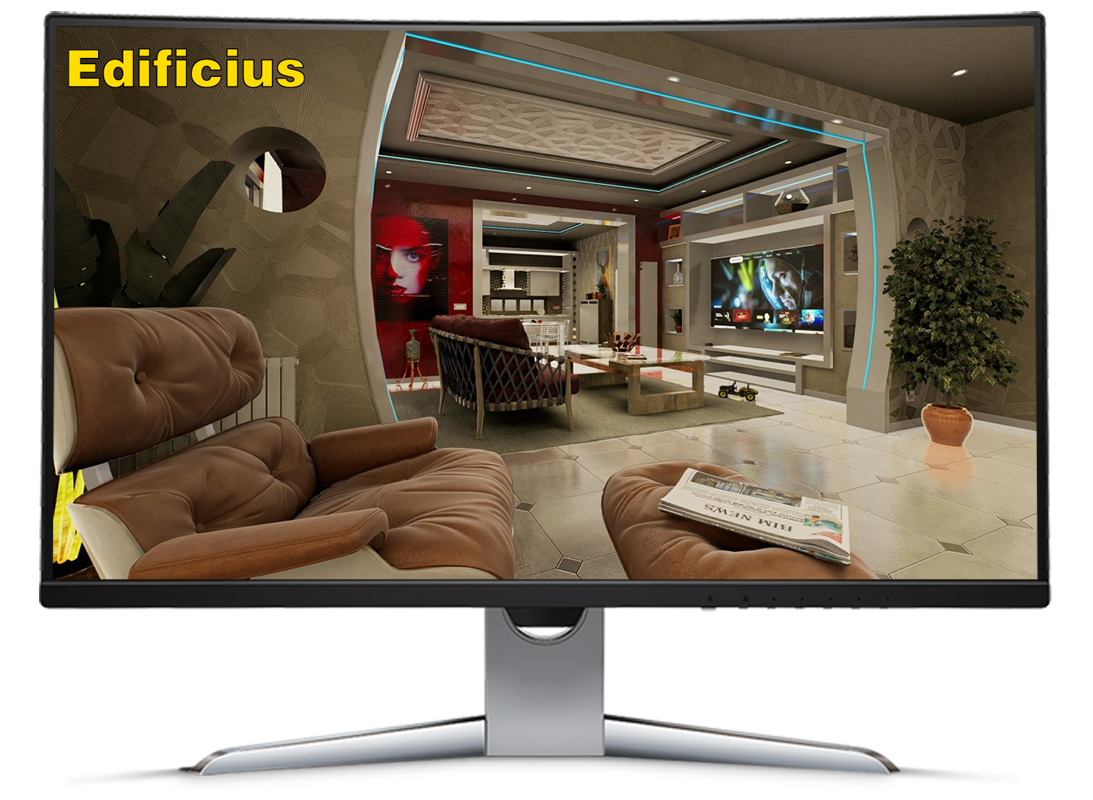

The example below shows the performance uplift for an interior design rendering in an FSR for PRO supported application.2
7.0 FPS
Native
11.3 FPS
Ultra Quality
14.6 FPS
Quality
18.4 FPS
Balanced
24.8 FPS
Performance
Partners
AMD FidelityFX Super Resolution for PRO partners are professional application developers that design, build, and deploy design and visualization software. Their goal is to help users enhance the performance of the software through integrations such as FSR for PRO.
Compatibility
AMD Radeon™ PRO Graphics
The next generation of professional graphics - built to perform and inspire your creative vision.
AMD Radeon PRO graphics provides superb performance, value, and reliability for digital content creators to meet the explosive demand for cutting edge visuals.
脚注
- AMD FidelityFX Super Resolution (FSR) is available on select applications and requires developer integration. FSR is “application dependent” and scales across a broad spectrum of new and older AMD products, including integrated graphics. It is optimized for AMD RDNA™ & AMD RDNA 2 architecture based Radeon PRO W6000 and W5000 Series graphics cards. It is also compatible with all AMD Ryzen™ Desktop and Mobile processors with AMD Radeon™ graphics if the minimum requirements of the application are met. FSR is also supported on select competitor graphics solutions. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendor’s graphics cards. GD-200
- Testing conducted by AMD Performance Labs as of 02/24/2022 on a test system comprising of Radeon PRO W6800 graphics, Intel® i5-9400 CPU @ 2.90 GHz and 6 cores, 16 GB RAM, 476 GB SSD, Windows 10 Pro, Radeon PRO Software for Enterprise 21.Q4 posted driver (driver version 21.40.11.02-211126a-374134C-RadeonPROEnterprise) using Edificius v.BIM 3(k) software with Ray tracing enabled. Results may vary. RPS-143
