Accelerating Generative LLMs Inference with Parallel Draft Models (PARD)

Apr 03, 2025

In recent years, generative AI has seen remarkable breakthroughs, from ChatGPT and Llama to o1, with continuous advancements in model capabilities. Models like DeepSeek-R1 have pushed inference performance to new heights, further enhancing AI’s reasoning abilities. At the same time, accelerating inference speed has become a key research focus. To address this, we introduce Parallel Draft (PARD), a highly adaptable method that leverages speculative decoding to significantly boost inference speed. With PARD, the Llama3 series achieve up to 3.3× speedup1 ,the DeepSeek series achieve up to 2.3× speedup2, and the Qwen series benefit from an impressive 4.87× speedupon 1x AMD Instinct MI250. This breakthrough presents fresh perspectives and innovative solutions for optimizing inference efficiency in generative AI models.

AR and AR+ represent baseline auto-regressive generation
Figure 1 AR and AR+ represent baseline auto-regressive generation using Transformers and Transformers+, respectively. VSD denotes vanilla speculative decoding. Evaluated on the HumanEval benchmark.

Speculative Decoding

Large language models (LLMs) typically generate text in an autoregressive manner, producing one token at a time while conditioning on all previously generated tokens. Although this token-by-token process ensures coherence and logical consistency, it often becomes a bottleneck for inference speed. To address this, speculative decoding has emerged as an effective strategy. This technique utilizes a more computationally efficient draft model to pre-generate a sequence of candidate tokens, which is subsequently verified and refined by the main model. The result is a significant boost in throughput without compromising text quality a novel solution that overcomes the limitations of traditional token-by-token generation.

Parallel Draft Model

While speculative decoding already offers substantial efficiency gains, traditional approaches still require multiple forward passes through the draft model. Although this reduces the computational load on the target model, it introduces extra overhead. To further optimize inference, we propose the PARD method. Building on speculative decoding and incorporating a Parallel Mask Predict mechanism, this approach reduces the draft model’s forward passes to just once. Prior work, such as BiTA, ParallelSpec and PaSS, has employed Parallel Mask Predict to enhance inference efficiency. Expanding on these ideas, our new PARD method upgrades the conventional autoregressive (AR) draft model into a Parallel Draft Model through minimal fine-tuning, dramatically accelerating inference across models like Deepseek-R1-distilled, Llama3, and Qwen. PARD is a target-independent approach, allowing a single draft model to accelerate an entire family of target models, thereby reducing deployment costs.

A comparison of the inference timelines between the AR Draft model and PARD
Figure 2: A comparison of the inference timelines between the AR Draft model and PARD.

PARD Inference

As illustrated in Figure 2, the timeline comparison between PARD and traditional AR models clearly shows that PARD substantially reduces the draft model’s processing time. Since AR models are restricted to predicting the next token, we introduce several mask tokens as padding after the base input tokens in Figure 3. This modification allows the model to predict multiple upcoming tokens in a single forward pass. PARD is a target-independent approach, during inference without relying on target model parameters or hidden states.

The left side illustrates the inference process of a standard AR draft model while the right side shows the PARD inference process
Figure 3: The left side illustrates the inference process of a standard AR draft model, while the right side shows the PARD inference process. The draft model requires only a single forward pass.

PARD Training

To enable the model to predict multiple subsequent tokens during inference as depicted in Figure 4. The training process is divided into several subtasks. Each subtask corresponds to predicting the next-k token. The designed attention mask ensures consistency between training and inference.

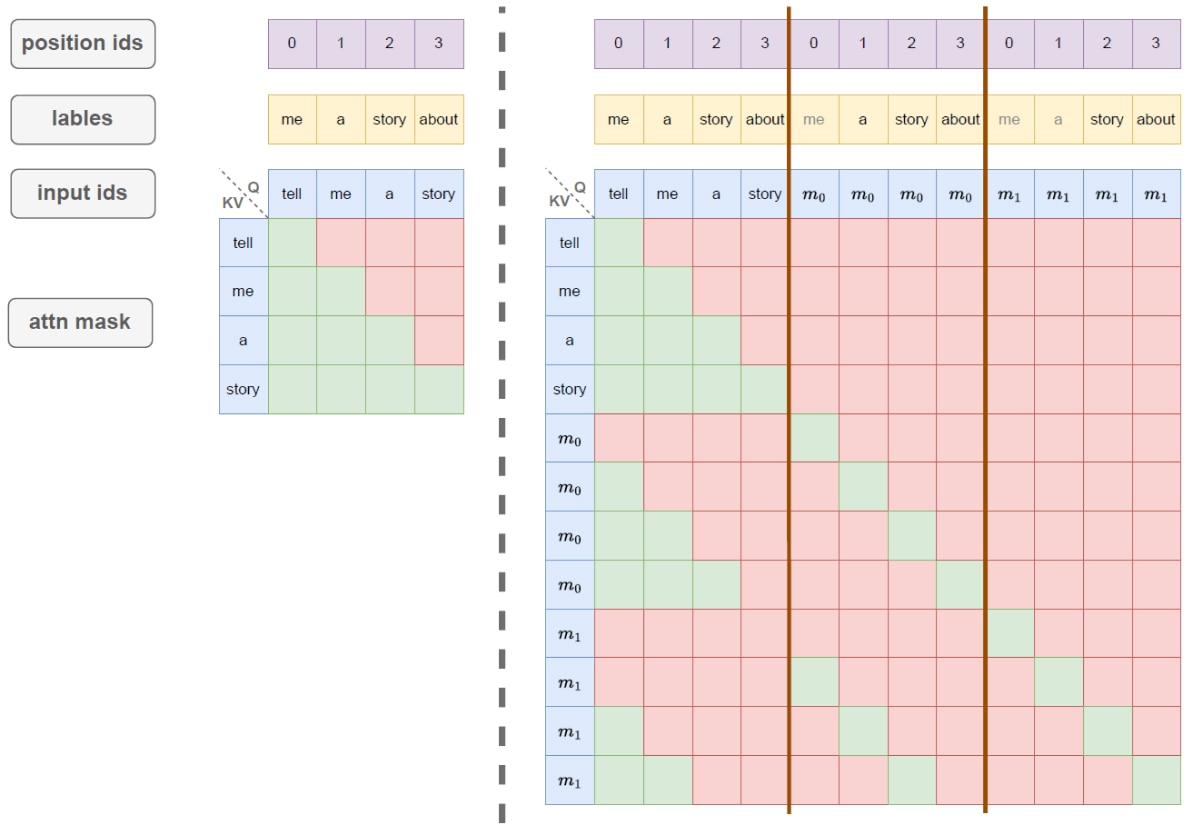

The left side shows the training data for a standard AR model, while the right side represents the data processed for PARD
Figure 4 The left side shows the training data for a standard AR model, while the right side represents the data processed for PARD.

Efficient PARD Training by Conditional Drop: Training the PARD model involves breaking it down into multiple subtasks. In theory, this increases training costs by a factor equal to the number of predicted tokens. For example, predicting eight tokens would make training eight times more expensive than the AR approach. To address this, we introduce a conditional drop strategy (Figure 5). This method selectively omits certain tokens based on their importance. As a result, training speed improves by 3× while maintaining nearly the same performance.

Illustration of Conditional Drop in PARD training
Figure 5 Illustration of Conditional Drop in PARD training. Left: Shaded areas indicate dropped training tokens, ensuring that each retained token maintains complete preceding key-value (KV) pairs. Middle: The resulting sparse attention structure after applying Conditional Drop. Right: The sparse matrix is reorganized into a compact format by eliminating dropped positions.

Evaluation

Performance and Deployment: for ease of adoption, we have integrated our inference code within the Transformers framework. By harnessing the power of torch.compile and optimizing KV-cache management, we have significantly enhanced inference speed. This enhanced solution referred to as Transformers+ can be seamlessly deployed as a plugin to the standard Transformers library. All evaluations were conducted using Transformers+ on 1x AMD Instinct MI250.

We evaluated the acceleration performance on the MATH-500, HumanEval, and GSM8K benchmarks, selecting Llama3 (L3), DeepSeek-R1-Qwen (DSR), and Qwen (Q) as target models. The evaluation was performed using a chain decoding structure with a temperature setting of 0. The results showed:

  • LlamaA 3 series achieved 2.33× to 2.89× speedup
  • DeepSeek-R1-Qwen series achieved 2.3× to 2.8× speedup
  • Qwen series achieved 2.75× to 4.77× speedup

Target Model

Draft Model

Method

MATH500

HumanEval

GSM8k

Average

L32 3B

L32 1B

AR Draft

1.39

1.45

1.33

1.39

L32 3B

L32 1B PARD

PARD

2.32

2.54

2.14

2.33

L31 8B

L32 1B

AR Draft

2.01

2.13

1.99

2.04

L31 8B

L32 1B PARD

PARD

2.69

3.30

2.68

2.89

DSR 7B

DSR 1.5B

AR Draft

1.40

1.29

1.41

1.37

DSR 7B

DSR 1.5B PARD

PARD

2.56

1.98

2.36

2.30

DSR 14B

DSR 1.5B

AR Draft

2.17

1.89

2.21

2.09

DSR 14B

DSR 1.5B PARD

PARD

3.26

2.30

2.85

2.80

Q2 7B

Q2.5 0.5B

AR Draft

1.89

1.99

1.93

1.93

Q2 7B

Q2.5 0.5B PARD

PARD

2.74

3.49

2.99

3.07

Q2.5 1.5B

Q2.5 0.5B

AR Draft

1.14

1.11

1.16

1.14

Q2.5 1.5B

Q2.5 0.5B PARD

PARD

2.72

2.78

2.74

2.75

Q2.5 3B

Q2.5 0.5B

AR Draft

1.55

1.50

1.61

1.55

Q2.5 3B

Q2.5 0.5B PARD

PARD

2.94

3.50

3.43

3.29

Q2.5 7B

Q2.5 0.5B

AR Draft

2.29

2.09

2.31

2.23

Q2.5 7B

Q2.5 0.5B PARD

PARD

3.84

4.30

4.48

4.21

Q2.5 14B

Q2.5 0.5B

AR Draft

3.37

3.19

3.53

3.36

Q2.5 14B

Q2.5 0.5B PARD

PARD

4.31

4.87

5.12

4.77

Q2.5 7B 1M

Q2.5 0.5B

AR Draft

2.24

2.08

2.39

2.24

Q2.5 7B 1M

Q2.5 0.5B PARD

PARD

3.66

3.76

4.16

3.86

vLLM Integration and Comparison with EAGLE: We integrated PARD into the mainstream inference framework VLLM and compared its performance with the leading academic method EAGLE. For the LLaMA3 8B model, PARD achieved 1.97 ~ 2.77× speedup[4][5] on the GSM8K task and 2.47 ~ 3.13× speedup[4][5] on the HumanEval task, as shown in Figure 6.

Different Methods on LLaMA3 8B with vLLM
Figure 6 Performance comparison between PARD and EAGLE within the VLLM framework.

Conclusion

We introduce PARD, a novel speculative decoding framework that adapted the vanilla draft model into a parallelized version, dramatically boosting autoregressive generation speed. Our approach features a conditional drop token strategy that accelerates training by over 3 times. Furthermore, PARD proves to be remarkably versatile, delivering consistent performance gains across diverse model families such as Llama3, DeepSeek-R1, and Qwen. Overall, PARD emerges as a robust and practical solution for high-performance language model inference.

Share:

Article By


附注
  1. On average, a system configured with an AMD Instinct™ MI250X GPU shows that with Parallele Draft (PARD), the Llama3 series models achieve up to 3.3× inference speedup. Testing done by AMD on 03/17/2025, results may vary based on configuration, usage, software version, and optimizations.

    SYSTEM CONFIGURATION
    System Model: Supermicro GPU A+ Server AS - 4124GQ-TNMI
    CPU: AMD EPYC 73F3 16-Core Processor (2 sockets, 16 cores per socket, 2 threads per core)
    NUMA Config: 2 NUMA node per socket
    Memory: 1024 GB (16 DIMMs, 3200 MT/s, 64 GiB/DIMM)
    Disk: Root drive + Data drive combined:
    2 x 894.3G SAMSUNG MZQL2960HCJR-00A07
    4 x 7T SAMSUNG MZQL27T6HBLA-00A07
    GPU: 4x AMD MI250X 128GB HBM2e 500W
    Host OS: Ubuntu 22.04.5 LTS 5.15.0-41-generic
    System BIOS: 2.5
    System Bios Vendor:American Megatrends International, LLC.
    Host GPU Driver: ROCm™ 6.3.2
  2. On average, a system configured with an AMD Instinct™ MI250X GPU shows that with Parallele Draft (PARD), the DeepSeek series models achieve up to 2.3× inference speedup. Testing done by AMD on 03/17/2025, results may vary based on configuration, usage, software version, and optimizations.

    SYSTEM CONFIGURATION
    System Model: Supermicro GPU A+ Server AS - 4124GQ-TNMI
    CPU: AMD EPYC 73F3 16-Core Processor (2 sockets, 16 cores per socket, 2 threads per core)
    NUMA Config: 2 NUMA node per socket
    Memory: 1024 GB (16 DIMMs, 3200 MT/s, 64 GiB/DIMM)
    Disk: Root drive + Data drive combined:
    2 x 894.3G SAMSUNG MZQL2960HCJR-00A07
    4 x 7T SAMSUNG MZQL27T6HBLA-00A07
    GPU: 4x AMD MI250X 128GB HBM2e 500W
    Host OS: Ubuntu 22.04.5 LTS 5.15.0-41-generic
    System BIOS: 2.5
    System Bios Vendor:American Megatrends International, LLC.
    Host GPU Driver: ROCm™ 6.3.2
  3. On average, a system configured with an AMD Instinct™ MI250X GPU shows that with Parallele Draft (PARD), the Qwen model series benefit from a 4.87× inference speedup. Testing done by AMD on 03/17/2025, results may vary based on configuration, usage, software version, and optimizations.

    SYSTEM CONFIGURATION
    System Model: Supermicro GPU A+ Server AS - 4124GQ-TNMI
    CPU: AMD EPYC 73F3 16-Core Processor (2 sockets, 16 cores per socket, 2 threads per core)
    NUMA Config: 2 NUMA node per socket
    Memory: 1024 GB (16 DIMMs, 3200 MT/s, 64 GiB/DIMM)
    Disk: Root drive + Data drive combined:
    2 x 894.3G SAMSUNG MZQL2960HCJR-00A07
    4 x 7T SAMSUNG MZQL27T6HBLA-00A07
    GPU: 4x AMD MI250X 128GB HBM2e 500W
    Host OS: Ubuntu 22.04.5 LTS 5.15.0-41-generic
    System BIOS: 2.5
    System Bios Vendor:American Megatrends International, LLC.
    Host GPU Driver: ROCm™ 6.3.2
  4. On average, a system configured with an AMD Instinct™ MI250X GPU shows that with Parallele Draft (PARD), llama3 8B achieved 2.77× speedup on the GSM8K task and 3.13× speedup on the GSM8K task. Testing done by AMD on 04/1/2025, results may vary based on configuration, usage, software version, and optimizations.

    SYSTEM CONFIGURATION
    System Model: Supermicro GPU A+ Server AS - 4124GQ-TNMI
    CPU: AMD EPYC 73F3 16-Core Processor (2 sockets, 16 cores per socket, 2 threads per core)
    NUMA Config: 2 NUMA node per socket
    Memory: 1024 GB (16 DIMMs, 3200 MT/s, 64 GiB/DIMM)
    Disk: Root drive + Data drive combined:
    2 x 894.3G SAMSUNG MZQL2960HCJR-00A07
    4 x 7T SAMSUNG MZQL27T6HBLA-00A07
    GPU: 4x AMD MI250X 128GB HBM2e 500W
    Host OS: Ubuntu 22.04.5 LTS 5.15.0-41-generic
    System BIOS: 2.5
    System Bios Vendor:American Megatrends International, LLC.
    Host GPU Driver: ROCm™ 6.3.1
    VLLM Version: base on 0.8.0rc1+rocm631
  5. On average, a system configured with an AMD Instinct™ MI300X GPU shows that with Parallele Draft (PARD), llama3 8B achieved 1.97× speedup on the GSM8K task and 2.47× speedup on the GSM8K task. Testing done by AMD on 04/15/2025, results may vary based on configuration, usage, software version, and optimizations.

    SYSTEM CONFIGURATION
    System Model: Supermicro GPU A+ Server AS -8125GS-TNMR2
    CPU: AMD EPYC 9575F 64-Core Processor (2 sockets, 64 cores per socket, 1 thread per core)
    NUMA Config: 1 NUMA node per socket
    Memory: 2.21TB
    Disk: Root drive + Data drive combined:
    2 x 894.3G SAMSUNG MZ1L2960HCJR-00A07
    4 x 3.5T SAMSUNG MZQL23T8HCLS-00A07
    GPU: 8x AMD MI300X 192GB HBM3 750W
    Host OS: Ubuntu 22.04.5 LTS 5.15.0-41-generic
    System BIOS: 3.2
    System Bios Vendor:American Megatrends International, LLC.
    Host GPU Driver: ROCmTM 6.3.1
    VLLM Version: base on 0.8.0rc1+rocm631
