Article Number: RS-INSTALL

System Requirements

For information about the system requirements please refer to the Radeon Software release notes posted on the driver download page.  System requirements may vary depending on the version of Windows® operating system installed.

Downloading Radeon Software

Radeon Software is available at AMD Drivers + Download Center.  The site provides two options to locate and download the latest version of the Radeon Software:

  1. Automatically Detect and Install Your Driver:  Run the AMD Driver Autodetect Tool to detect your Radeon™ graphics product and Windows® operating system.  If your graphics card and Windows® version are compatible with Radeon Software, the tool will provide the option to download it. More information on using AMD Driver Auto-detect Tool, please see KB article:  Obtaining Graphics Drivers Using the AMD Driver Auto-Detect Tool

  2. Manually Select Your Driver:  Use the AMD Product Selector to choose your Radeon™ graphics product and available drivers.  More information on using the AMD Product Selector, please see KB article:  How to Find the Latest Compatible Drivers for an AMD Graphics Product

Installing Radeon Software

Ensure that any existing AMD graphics driver on the system is removed before installing a new driver package.  Performing a complete uninstall ensures a clean system and can help reduce issues or conflicts that may occur on new installations.

For instructions on how to uninstall AMD graphics drivers please refer to KB article: How to Uninstall Radeon Software from a Windows Based System

Note: Close all opened applications including anti-virus, firewall, remote-access, or webcam software before attempting the install process.

Once the Radeon Software package has been downloaded, run the executable file to begin the installation.

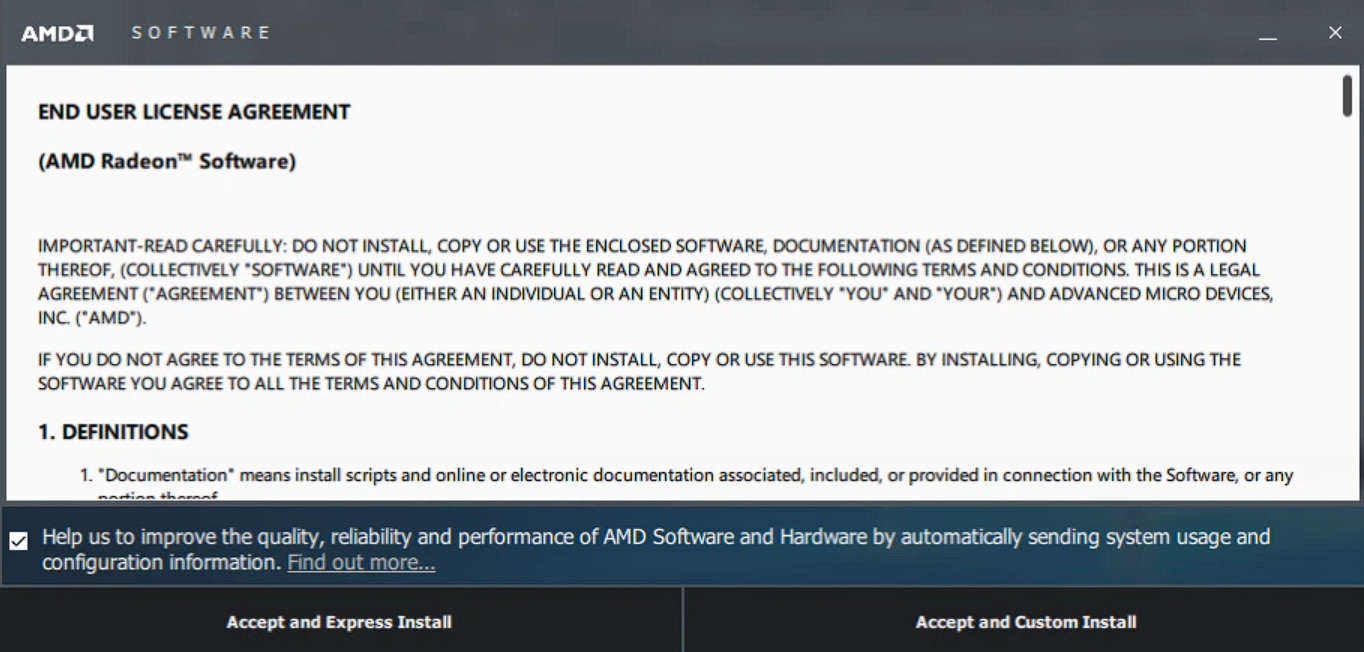

The End User License Agreement will be presented at the start.  Review the End User License Agreement and information about the User Experience Improvement Program.


If you agree to the terms, select either Accept and Express Install or Accept and Custom Install to move on to the next stage of installation or click on X to quit and exit to the Desktop.

Accept and Express Install – Installs only default components included in the driver package.  Radeon ReLive and other optional components are not installed.

Accept and Custom Install – Provides a list of core and optional components included in the driver package and allows the user to manually select items to be included in the installation.  Radeon ReLive install option will be presented for eligible systems near the end of the installation process.

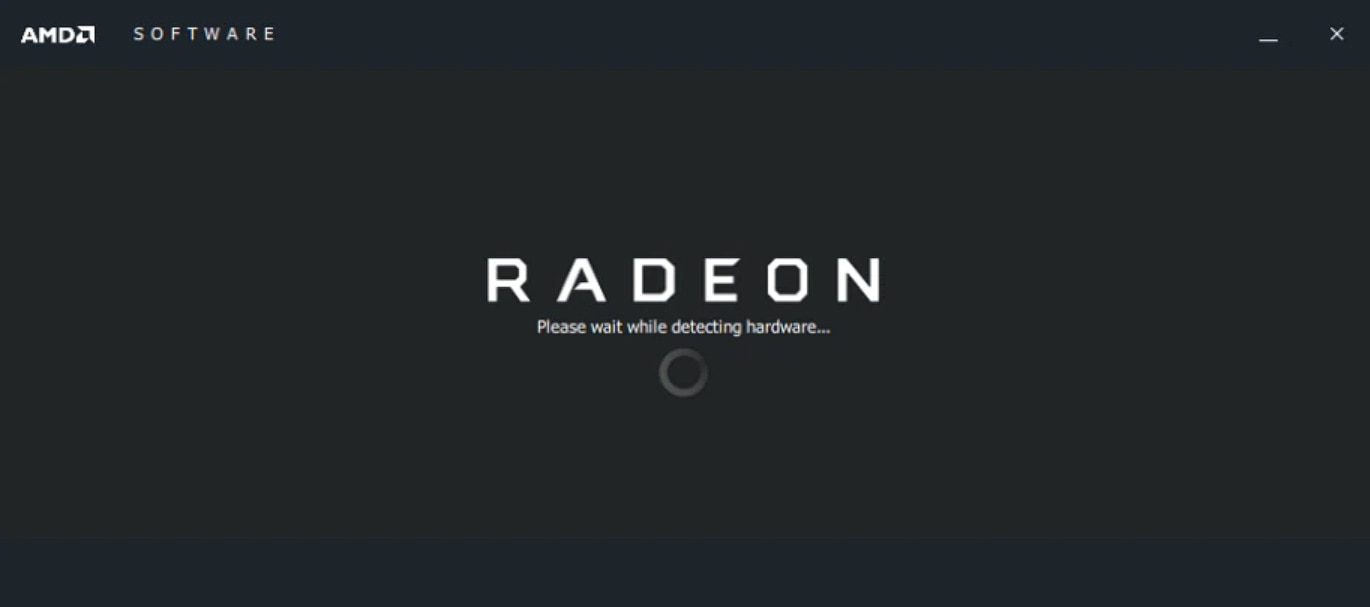

Once the installation begins, the AMD Software Installer will attempt to detect your AMD graphics product.

After the detection phase is complete, the following screens and prompts presented will be based on the selected installation type.

Express Install

This installation type should install all core software and driver components in the default folder location, C:\Program Files\AMD\.  The installation process begins immediately after selecting Accept and Express Install and requires minimal user interaction.

NOTE!  The display(s) may flicker and/or lose image briefly during installation.  This is expected behavior and image will be restored once installation is complete.

For Radeon ReLive eligible systems, the InstallRadeon ReLive option screen will not be presented when using Express Install.  Instead, the Radeon ReLive package are copied to the Radeon Settings folder and can be installed at a later time.

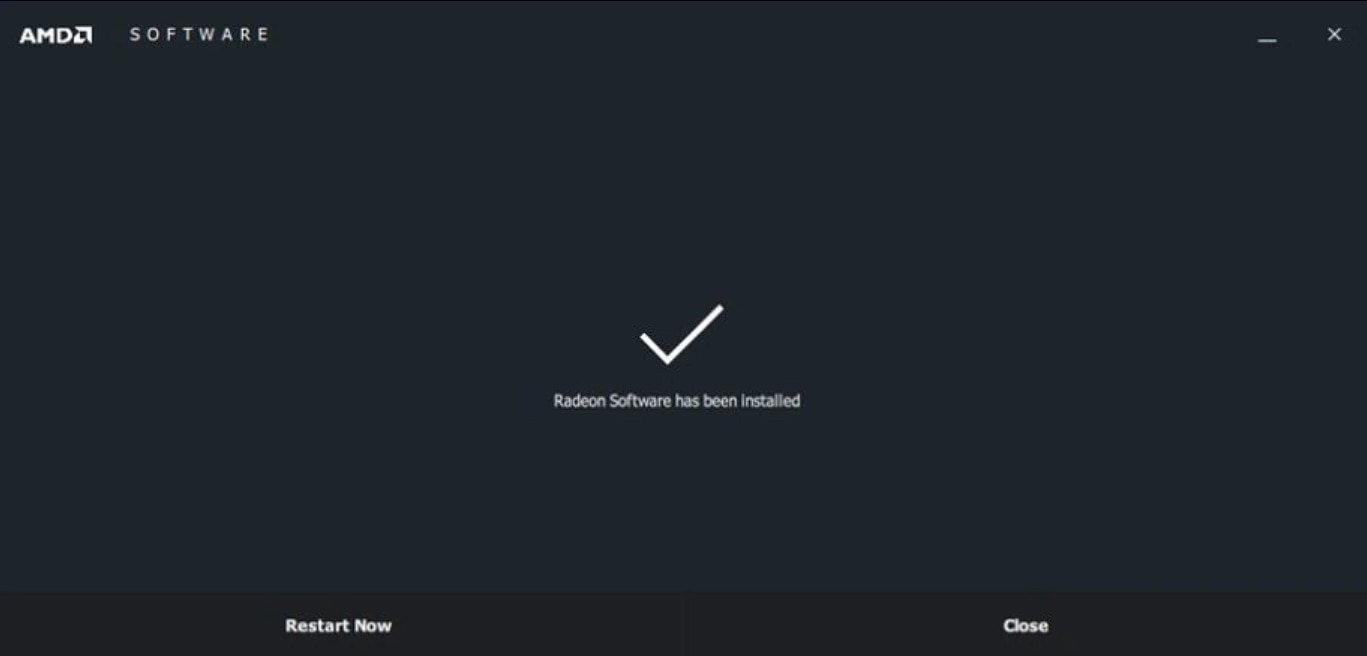

Once the installation has successfully completed, the final screen should provide Restart Now and/or Close options, as shown in the example below:

Restart Now will restart the system and Close will exit to the Desktop.  If system restart is not required, then only the Close option will be available.

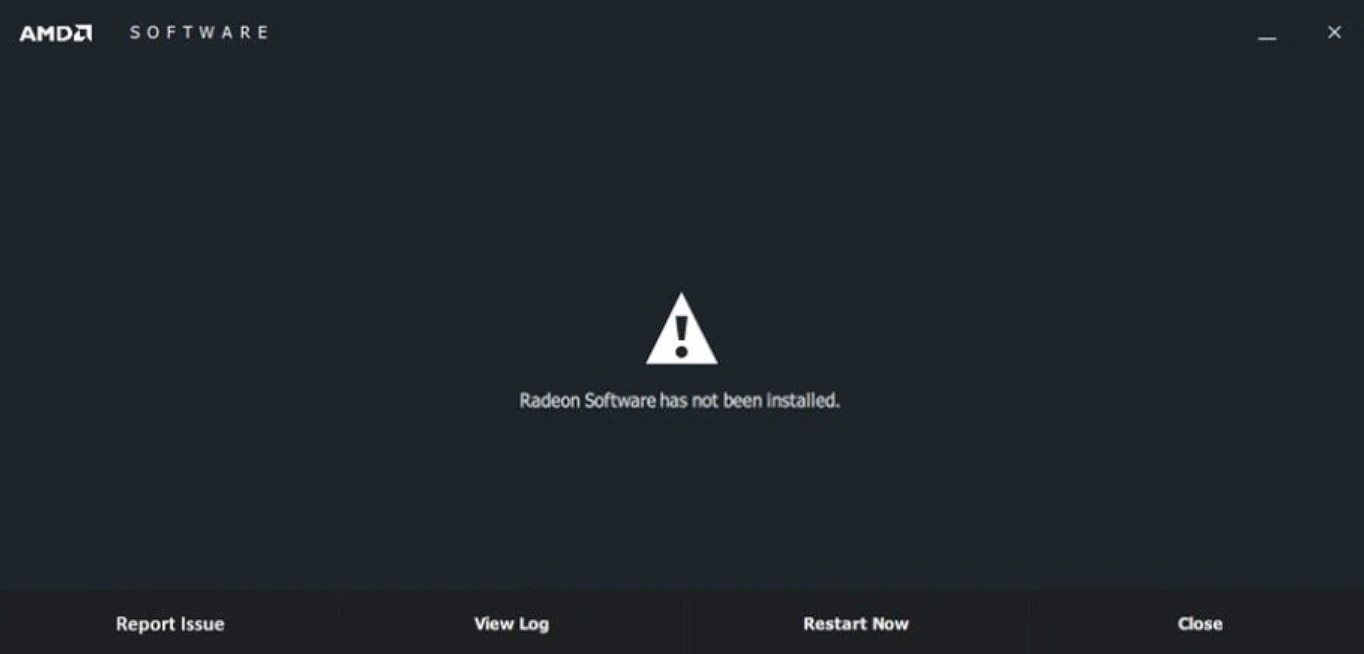

If one or more components were not installed or the installation was interrupted, the final screen should provide the options shown in the example below:

Report Issue opens the AMD Issue Reporting Form using the default web browser.  The AMD Issue Reporting Form can be used to provide feedback on the installation issue.  The system must be connected to the internet otherwise, the page will not be displayed.

View Log opens the installation log file (Report.xml) using the default web browser.  The log file contains details about the graphics hardware and software components installed.  The Report.xml file can also be found in the folder:  C:\Program Files\AMD\CIM\Reports\

Restart Now will restart the system and Close will exit to the Desktop.  If system restart is not required, then only the Close option will be available.

Custom Install

This installation type provides the option to specify the individual components and the location where they are to be installed.

After selecting Accept and Custom Install, the Installer should begin checking for any Radeon Software that is currently installed in the system and one of the following two scenarios should occur:

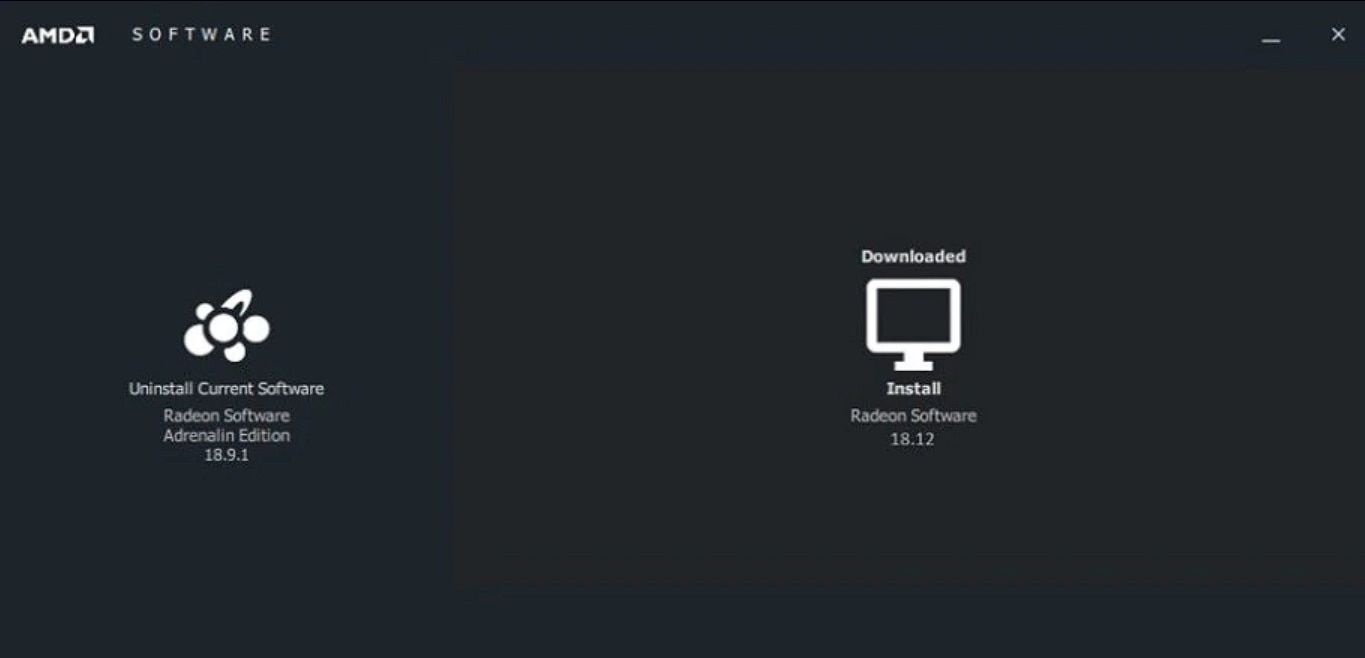

  1. The Installer detected a version of Radeon Software is currently installed and displays a screen like the example below:

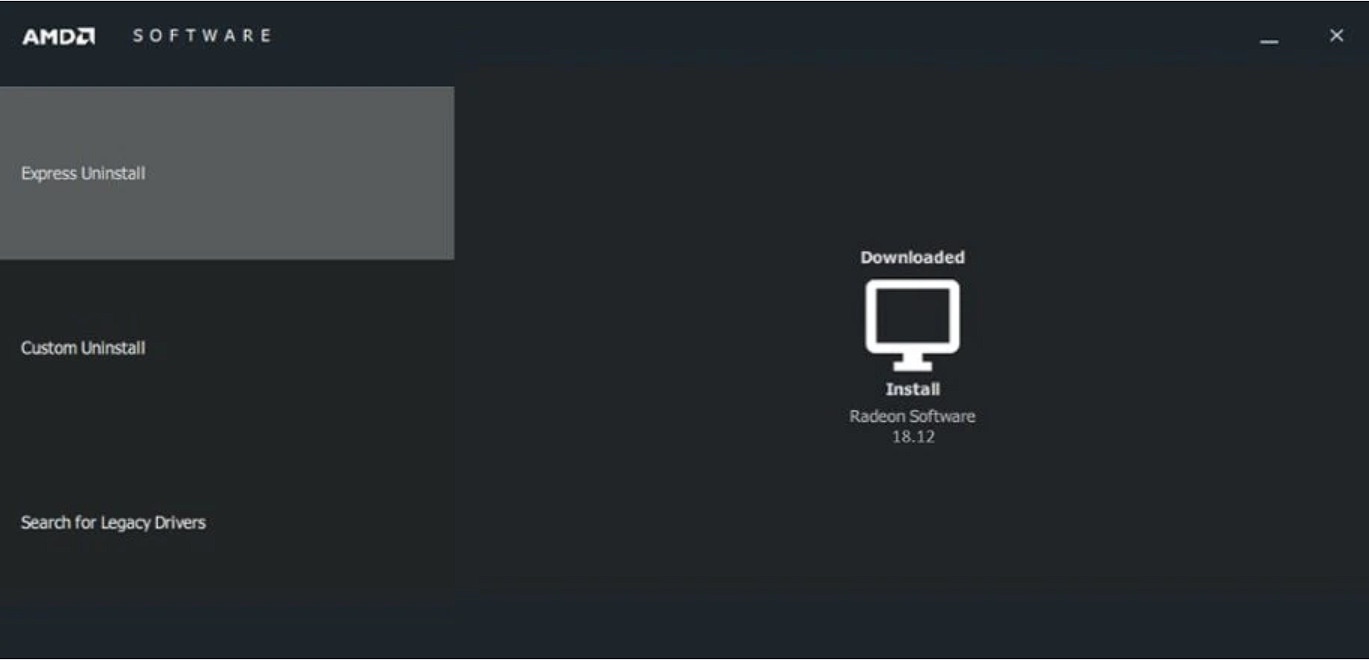

Selecting Uninstall Current Software should open a menu providing the following choices:

Express Uninstall – Automatically uninstalls all components of the currently installed Radeon Software package.
Custom Uninstall – Allows selecting individual components to be uninstalled.
Search for Legacy Drivers – Opens the AMD Drivers and Support page where older driver versions can be obtained.

NOTE!  These are optional choices.  The installation of the downloaded Radeon Software package will not continue after Express Uninstall or Custom Uninstall has completed.  To continue installing the downloaded Radeon Software package, please rerun the executable file.

To install the downloaded Radeon Software package, select Install Radeon Software (version), and click Install:

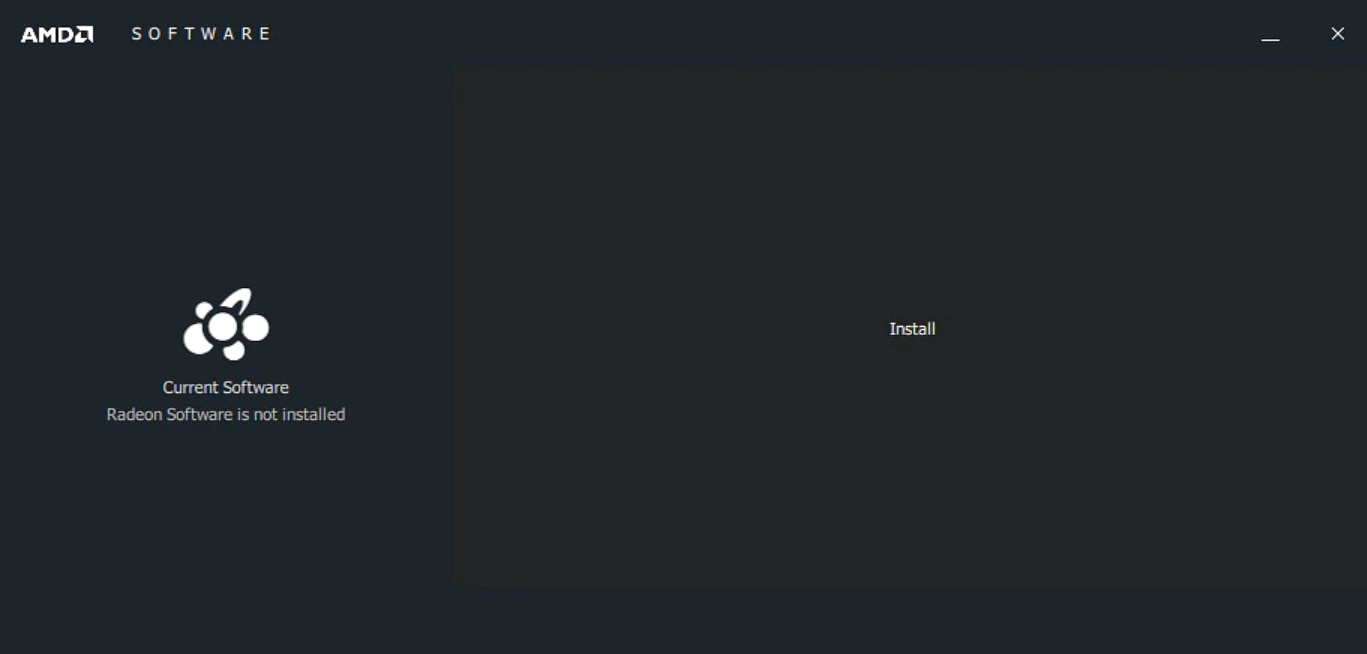

  1. The Installer did not detect any installed version of Radeon Software and displays a screen like the example below:

To install the downloaded Radeon Software package, select Install Radeon Software (version), and click Install:

After clicking Install, the following screen will display the destination folder and components for installation, as shown in the example below:

NOTE!  It is recommended to use the default destination folder for installation.

If another version of Radeon Software is installed and detected during the previous step, a Clean Install option will be available on the Custom Install screen, as shown below.

Clean Install attempts to remove all detected versions of Radeon Software and AMD drivers from the system before installing the selected components.  This prevents rolling back to a previously installed driver version (via Device Manager) but can help resolve some common corrupted driver installation problems.

NOTE!  Since the system will be forced to reboot as part of Clean Install process, make sure to save your work before proceeding.  After the system has rebooted, the installation should continue automatically.

Near the end of the installation, a screen providing the option to install Radeon ReLive should appear for eligible systems, as shown in the example below:

NOTE!  Radeon ReLive is only available on eligible systems.

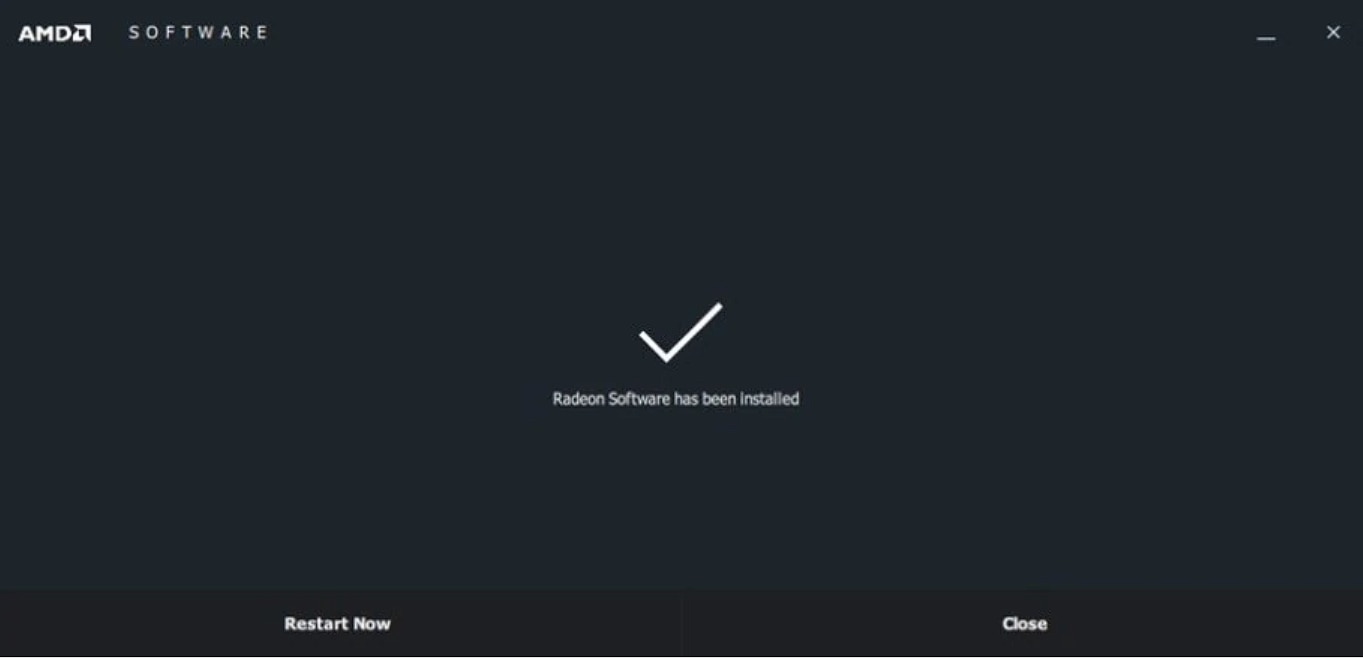

Once the installation has completed successfully, the final screen should provide Restart Now and/or Close options, as shown in the example below:

Restart Now will restart the system and Close will exit to the Desktop.  If system restart is not required, then only the Close option will be available.

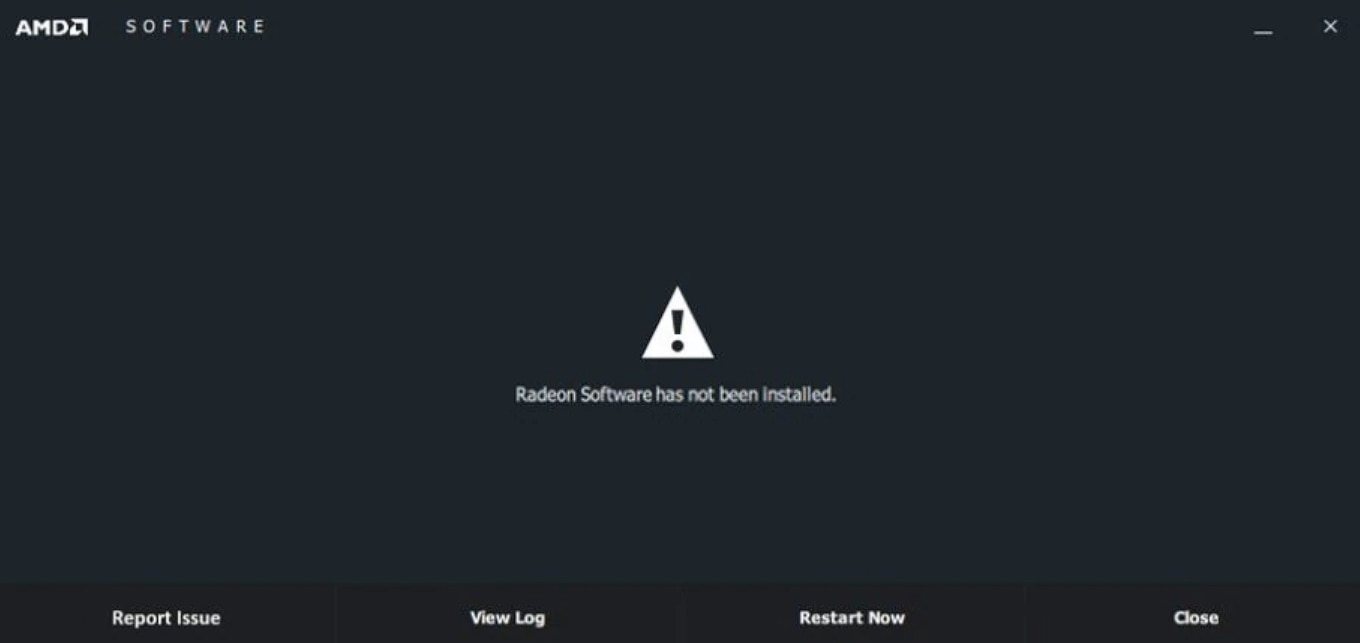

If one or more components were not installed or the installation was interrupted, the final screen should provide the options shown in the example below:

Report Issue opens the AMD Issue Reporting Form using the default web browser.  The AMD Issue Reporting Form can be used to provide feedback on the installation issue.  The system must be connected to the internet otherwise, the page will not be displayed.

View Log opens the installation log file (Report.xml) using the default web browser.  The log file contains details about the graphics hardware and software components installed.  The Report.xml file can also be found in the folder:  C:\Program Files\AMD\CIM\Reports\

Restart Now will restart the system and Close will exit to the Desktop.  If system restart is not required, then only the Close option will be available.



Potential Errors and Solutions

If the Installer encountered a problem during the detection, download and/or installation phase, one of the following messages may be displayed:

When any one of the above errors occur, the Installer cannot continue further until the issue is resolved.  For information about an error and recommended solution(s), please click on its link above to view the associated KB article.

Installing Radeon Software using the Command Line Interface

For instructions on how to perform an unattended installation of Radeon Software using the Command Line Interface, please refer to the following document.
